1U short-depth Rackmount
CPU : Intel Atom x7405C 4-core Processor
Memory : 8 GB SODIMM DDR5
Drive Bay : 4-Bay SATA HDD + 3 E1.S NVMe
LAN : 2x 2.5 Gigabit
USB Port : 1 x USB 3.2 Gen 2 + 1 x USB 2.0
OS : QTS / QuTS hero

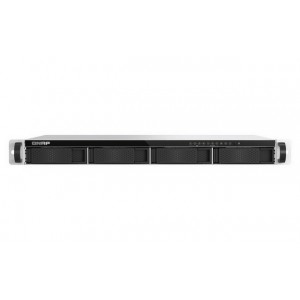

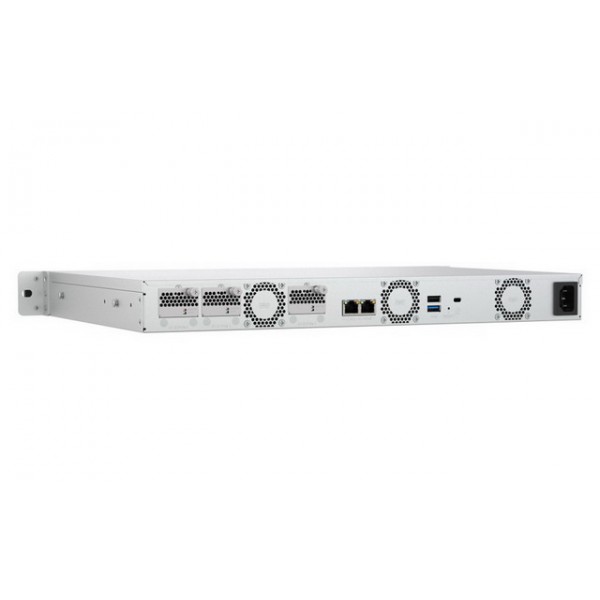

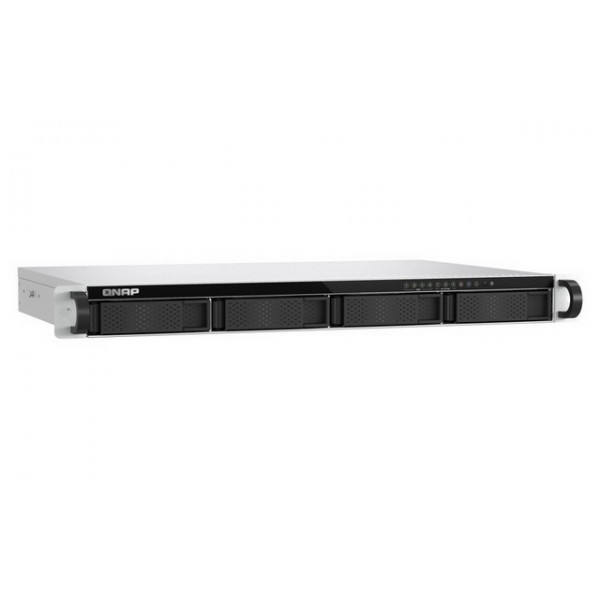

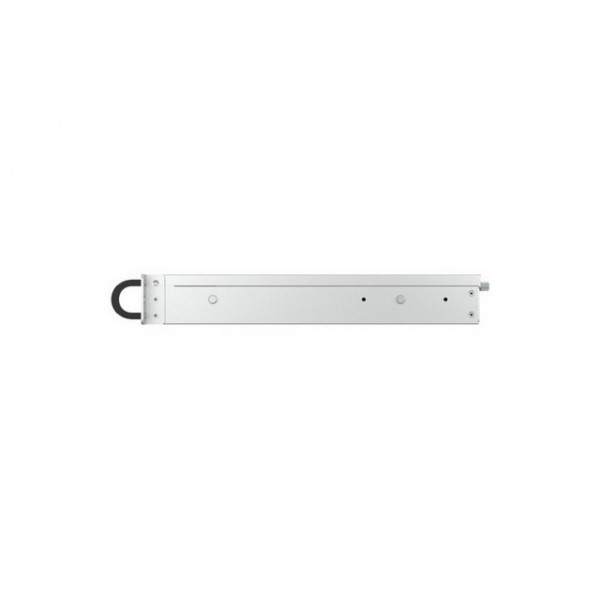

The 1U short-depth rackmount TS-h765eU is designed for space-constrained environments, offering an efficient and reliable storage solution for various needs. Adopting the latest Intel Atom x7000C Series processor, the TS-h765eU comes with four 3.5-inch drive bays and three E1.S / M.2 PCIe NVMe slots for exceptional expandability, making it an ideal NAS for high performance and multitasking demands.
Price is excluded Rail Kit.
QNAP NAS is shipped without Hard Disk
Hardware Specification :
QNAP TS-h765eU-8G
Intel Atom x7000C 7-Bay Rackmount NAS
| CPU |
Intel Atom x7405C 4-core, up to 3.4GHz |
| System Memory | 8 GB SODIMM DDR5 (1 x 8 GB), enabled in-band ECC |
| Maximum Memory | 16 GB (1 x 16GB) |
| Memory Slot | 1 x SODIMM DDR5 |
| Flash Memory | 8GB (Dual boot OS protection) |
| Drive Bay |
4 x 3.5-inch SATA 6Gb/s, 3Gb/s 3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots) The system is shipped without Hard Disk |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives E1.S NVMe PCIe SSDs M.2 2280 NVMe PCIe SSDs |
| M.2 Slot |
3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots) |
| LAN Port |
2 (2.5G/1G/100M/10M) |
|
USB port |
USB 2.0 port x 1 USB 3.2 Gen 2 (10Gbps) Port x 1 Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor |
1U Short Depth Rackmount |
| Dimensions | 43 × 430 × 292.1 mm |
| Weight | 4.51 kg |
| Warranty | 3 years |
