Synology 16-Bay Rackmount NAS
CPU : Intel Xeon D-1739 8-core/16-Threads
Memory : 16 GB DDR4 ECC (Up to 96 GB)
Drive Bays : 16 (Up to 64)
LAN Port : 2 x RJ-45 10GbE
USB Port : 2 x USB 3.2 Gen 1
PCIe Expansion : 2 x Gen4 x8 slot
Redundant Power Supply
High-Performance Enterprise Storage: Scalable to 64 Bays
The RS6426xs+ is an all-in-one solution for central data management, backup, and surveillance. Designed to grow with your business, it features 64-bay scalability via four RX1225RP 12-bay expansion units, versatile networking configurations, and SSD caching support. A full suite of reliability, availability, and serviceability features ensures continuous operation.
Hardware Specification :

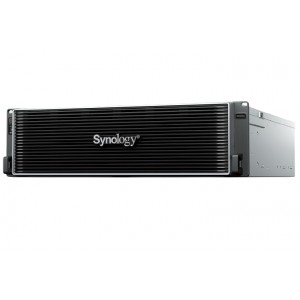

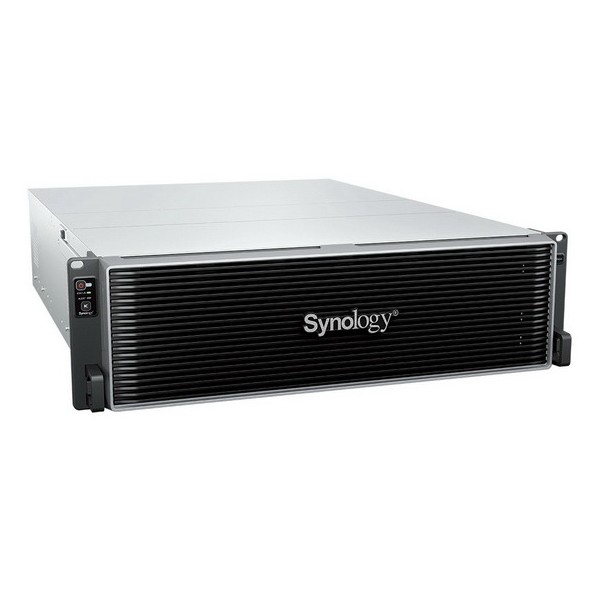

Synology RackStation RS6426xs+ 16-Bay Rackmount NAS
Synology NAS is shipped without hard drive & Rack Rail Kit
| CPU |
Intel Xeon D-1739 CPU Cores 8 CPU Threads 16 CPU Architecture 64-bit CPU Frequency 3.0 (base) / 3.5 (turbo) GHz Hardware Encryption Engine Yes |
| System Memory |
16 GB DDR4 ECC RDIMM Memory Expandable up to 96 GB (16 GB x 6) |
| Drive Bays |
16 Drive Bays Hot Swappable Maximum Drive Bays with 64 Expansion Units RX1225RP x 4 |
| Compatible Drive Type |
3.5" SATA HDD 2.5" SATA SSD Hot Swappable Drive (hard drives not included) |
| External Ports |

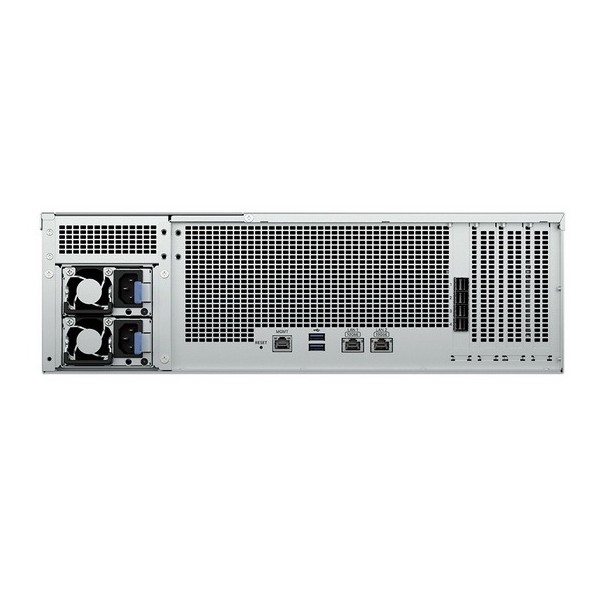

RJ-45 10GbE LAN Port : 2 Out-of-Band Management LAN Port : 1 USB 3.2 Gen 1 Port : 2 Expansion Port : 4 Expansion Port Type Mini-SAS HD |
| PCIe Expansion |
2 x Gen4 x8 slot (x8 link) |
| Size | 132.3 x 482 x 656.5 mm |
| Weight | 17.9 kg |
| Warranty | 5 year |
