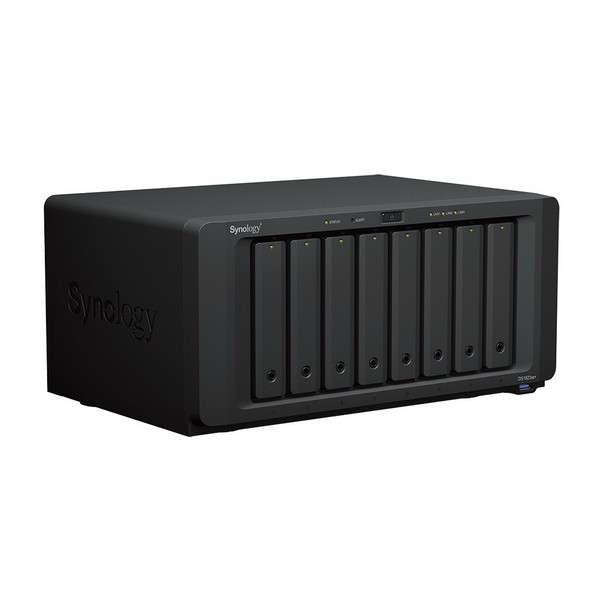

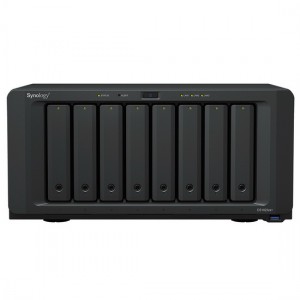

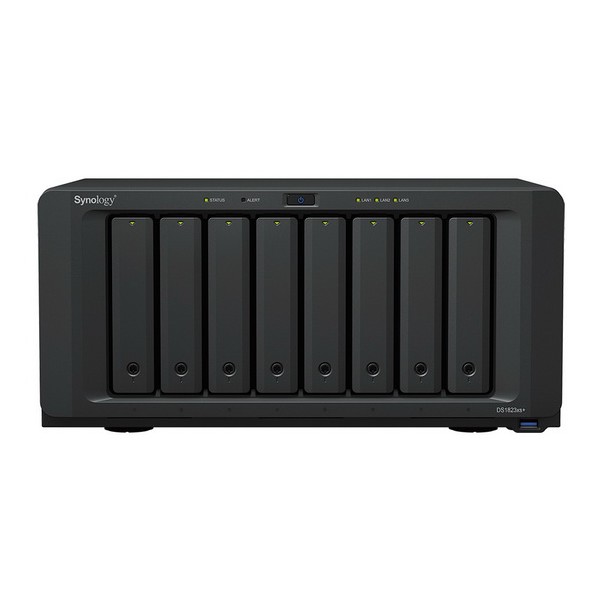

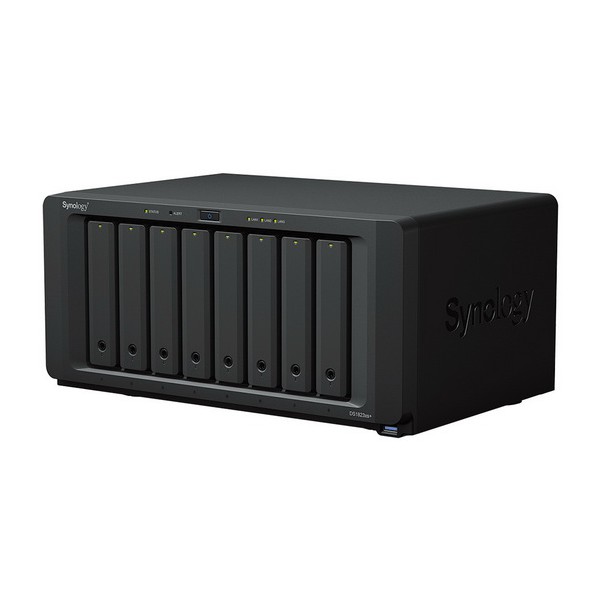

Synology DiskStation DS1823xs+ 8-Bay NAS

Synology 8-Bay Desktop NAS

CPU : AMD Ryzen V1780B 4-core 3.35 GHz

Memory : 8 GB DDR4 ECC (Up to 32GB)

Drive Bay : 8 (Up to 18)

M.2 Slot : 2 (NVMe)

LAN Port : 2 x RJ-45 1GbE / 1 x RJ-45 10GbE

USB Port : 3 x USB 3.2 Gen 1

eSATA Port : 2

PCIe Expansion : 1 x Gen3 x8 slot

More details


70,100.00 ฿ tax excl.

Synology DiskStation DS1823xs+
8-Bay NAS



Flexible large-scale storage for small and medium-sized businesses



The DS1823xs+ is a powerful central storage server that can easily be deployed anywhere to provide shared data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications. It is perfect in settings where no dedicated server rack or data center is available.



Hardware Specification :

Synology DiskStation DS1823xs+ 8-Bay NAS

Synology NAS is shipped without hard drive

CPU

AMD Ryzen V1780B 4-core 3.35 (base) / 3.6 (turbo) GHz 64-bit

Hardware Encryption Engine (AES-NI)

System Memory

8 GB DDR4 ECC SODIMM (1 x 8GB)

Memory Expandable up to 32 GB (16 GB x 2)

Drive Bays

8 Drive Bays Hot Swappable

Maximum Drive Bays 18 with Expansion Unit

M.2 Slots

2 (NVMe)

Compatible Drive Type

3.5" SATA HDD

2.5" SATA SSD

M.2 2280 NVMe SSD

(HDD/SSD not included)

Supported RAID Type

Synology Hybrid RAID / Basic / JBOD /

RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10

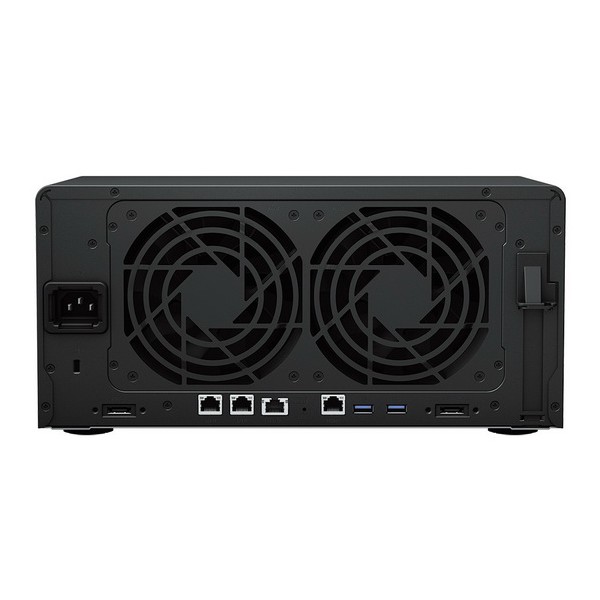

External Ports

RJ-45 1GbE LAN Port : 2 (with Link Aggregation / Failover support)

RJ-45 10GbE LAN Port : 1

Management LAN Port : 1

USB 3.2 Gen 1 Port : 3

eSATA Port : 2

PCIe Expansion

1 x Gen3 x8 slot (x4 link)

Virtualization

VMware vSphere with VAAI

Windows Server 2019

Citrix Ready

OpenStack

Power Supply Unit  250W
Size 166 x 343 x 243 mm
Weight  6.2 kg
Warranty 3 year
