CPU : Intel Core i5-1235U
Memory : 16 GB on board
M.2 Slot : 5 x E1.S or M.2 2280 PCIe NVMe
LAN Ports : 1 x 10GBASE-T, 1 x 2.5 Gigabit Ethernet
Thunderbolt 4 Port : 2
USB 3.2 Gen 2 Port : 2
USB 2.0 port Port : 1
HDMI Output : 1

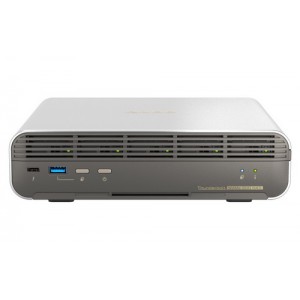

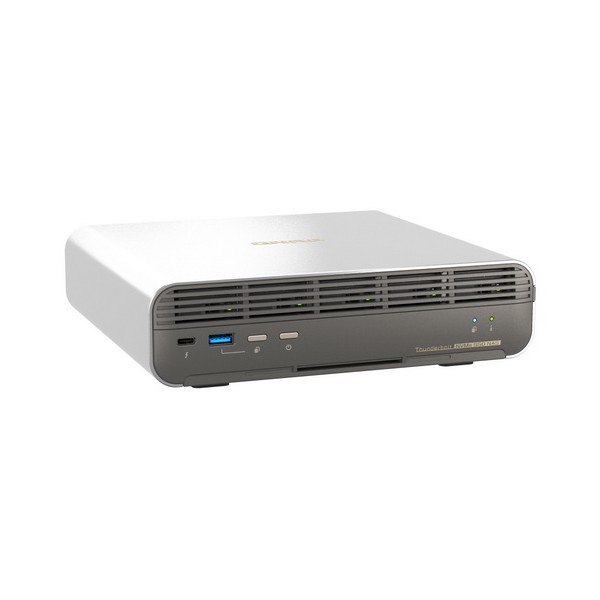

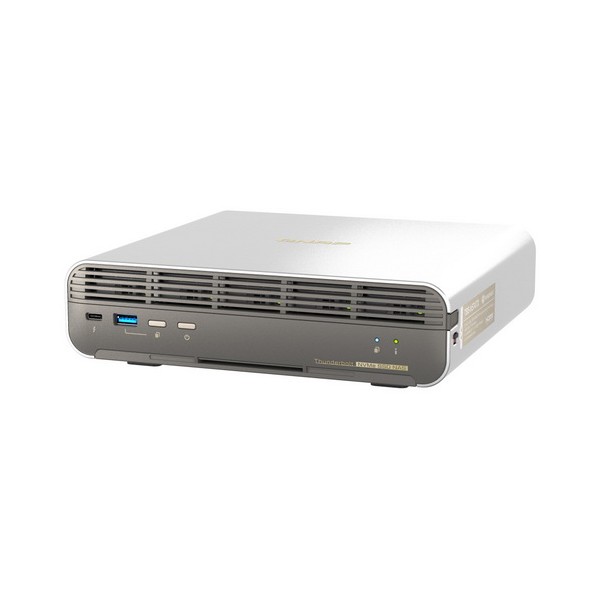

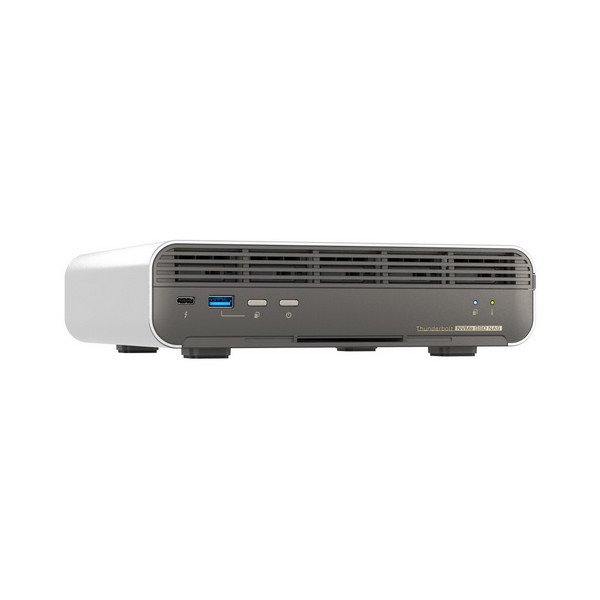

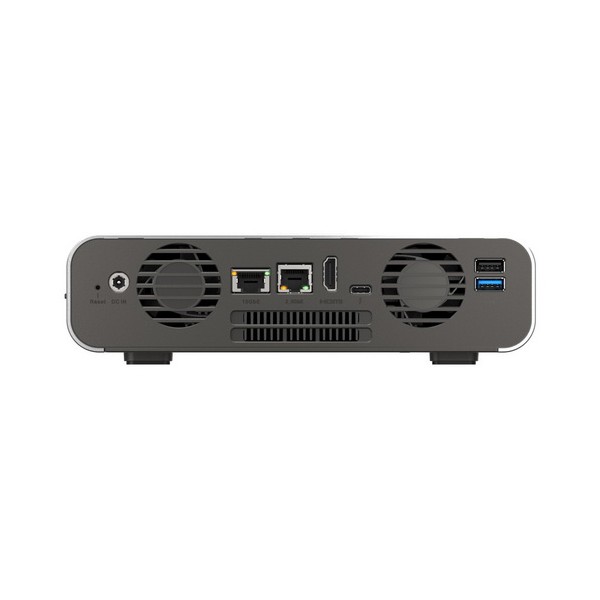

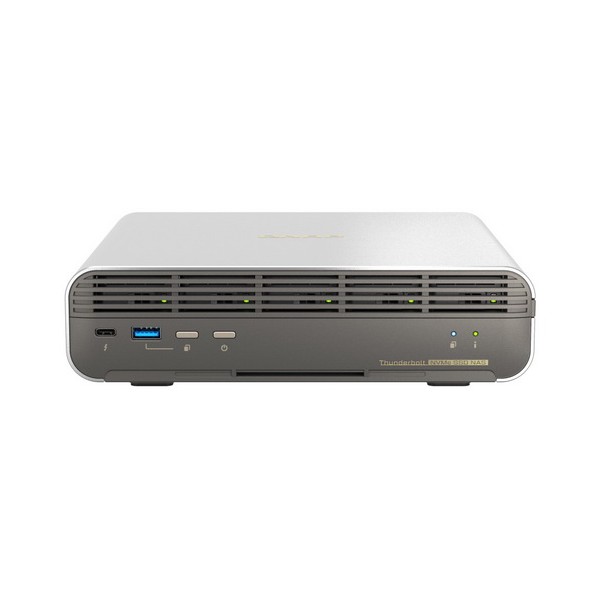

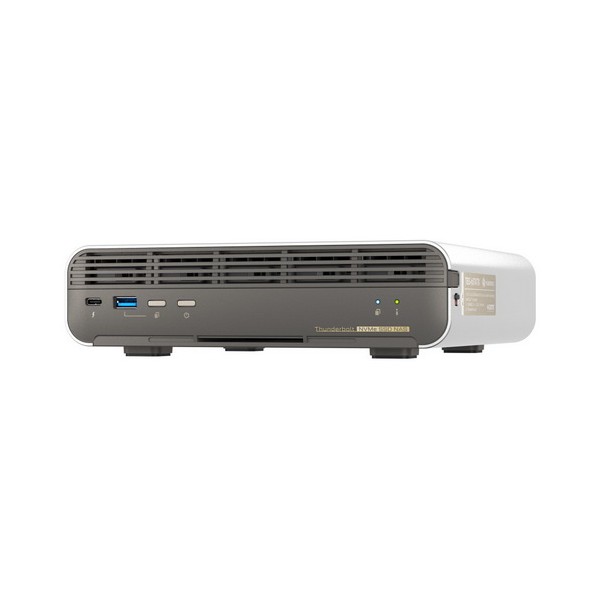

TBS-h574TX is a Thunderbolt™ 4 all-flash NASbook designed for on-location shoots, small studios, small-scale video production teams, and SOHO users. Featuring an Intel® Core™ processor and high-speed I/O, TBS-h574TX enables online editing, visual effects (VFX), file transfer and backup for both Mac® and Windows® creators. Hot-swappable SSD support also ensures uninterrupted project flows. Pre-installed with QuTS hero OS, it supports ZFS data integrity, immutability, and advanced SSD optimization technologies.
Hardware Specification :
QNAP TBS-h574TX-i5U-16G
| CPU |
Intel® Core™ i5-1235U, 10C (2P+8E)/12T, 4.4GHz |
| System Memory |
16 GB on board (non-expandable) |
| Flash Memory | 5GB (Dual boot OS protection) |
| M.2 Slot |
5 x E1.S up to 15mm (5x PCIe Gen3 x2) The system is shipped without SSD |
| LAN Port |
1 x 2.5 Gigabit (2.5G/1G/100M) 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
|
Thunderbolt Port |
2 x Thunderbolt 4 |
|
USB |
2 x USB 3.2 Gen 2 (10Gbps) Port 1 x USB 2.0 port |
| HDMI | 1, HDMI 1.4b |
| Buttons |
Status, USB copy, Reset |
| Form Factor | Set-top design |
| Dimensions | 60 × 215 × 199 mm |
| Weight | Net: 2.24 kg |
The system is shipped without SSD
