CPU : Intel Xeon D-1602 2-core 3.2 GHz Processor
Memory : 8 GB DDR4 (Max. 128 GB)
Harddisk Tray : 8-Bay
M.2 Slot : 2 NVMe
LAN : 4x 2.5 Gigabit
PCIe Slot : 2
USB Port : 3 x USB 3.2 Gen 1
Delivering enterprise performance at SMB prices, the TS-h886 features an Intel Xeon D processor and DDR4 ECC (Error Correcting Code) memory (expandable to 128 GB) with dependable reliability. With the ZFS-based QuTS hero operating system, the TS-h886 ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync.
QNAP NAS is shipped without Hard Disk
Hardware Specification :

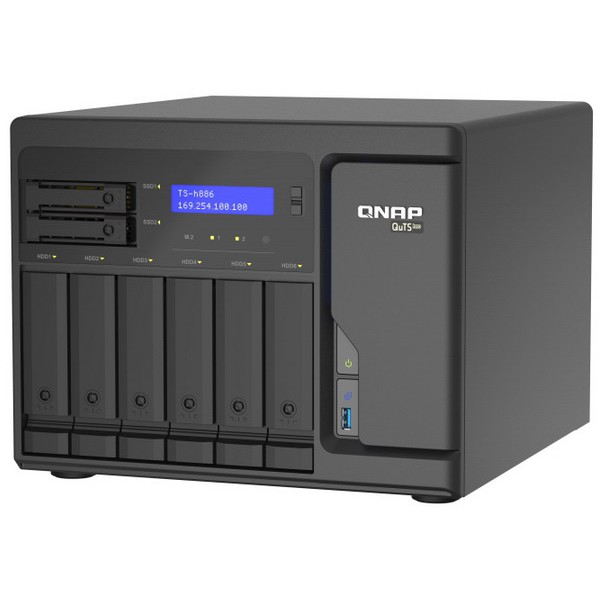

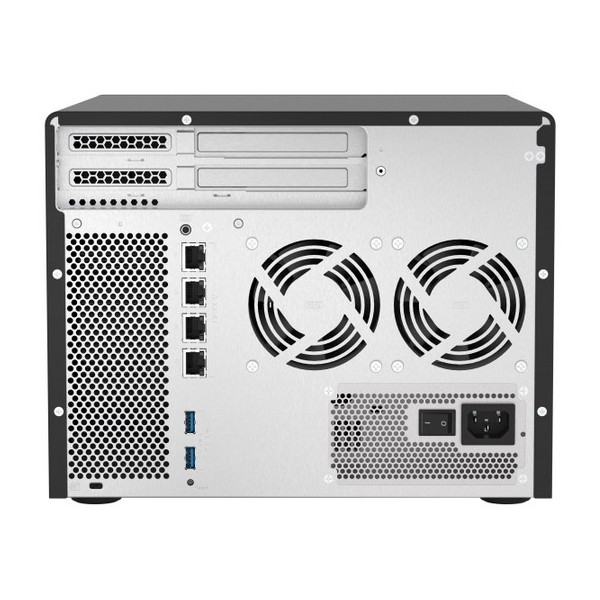

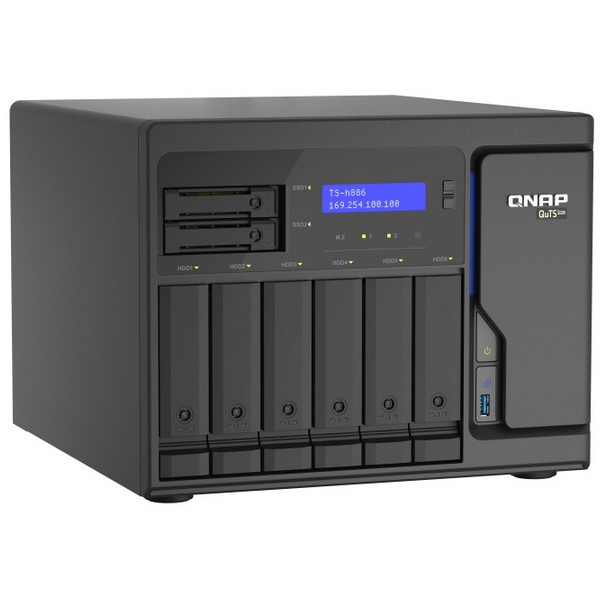

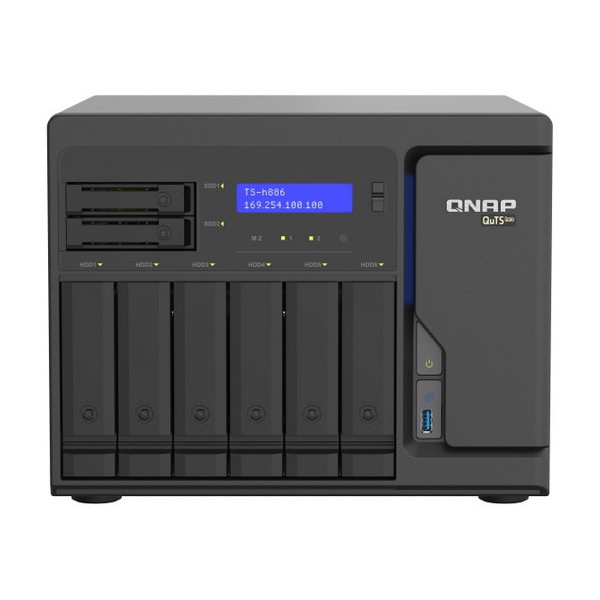

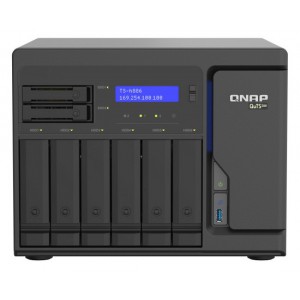

QNAP TS-h886-D1602-8G 8-Bay Desktop NAS
| CPU |
Intel Xeon D-1602 2-core processor up to 3.2 GHz |
| CPU Architecture |
64-bit x86 |
| Floating Point Unit |
Yes |
| Encryption Engine |
Yes (AES-NI) |
| Hardware-accelerated Transcoding |
Yes |
| System Memory | 8 GB UDIMM DDR4 ECC (2 x 4 GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay |
6 x 3.5-inch SATA 6Gb/s, 3Gb/s 2 x 2.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without Hard Disk |
| Drive Compatibility |
3.5-inch bays: 2.5-inch bays: |
| Hot-swappable | Yes |
| M.2 SSD Slot | 2 x M.2 2280/22110 NVMe Gen3 x4 slots |
| SSD Cache Acceleration Support | Yes |
| LAN Port |
4 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M) |
| PCIe Slot |
2 |
|
USB port |
3 x USB 3.2 Gen 1 port |
| Form Factor |
Tower, Desktop |
| Dimensions | 231.9 x 292.9 x 319.8 mm |
| Weight | 8.5 kg |
