Synology FlashStation FS3420 24-Bay 2.5" Rackmount SATA All-Flash NAS

Synology 24-Bay Rackmount NAS

CPU : Intel Xeon D-1739

Memory : 32 GB DDR4 ECC (Up to 192GB)

Drive Bay : 24

RJ-45 10GbE LAN Port : 2

USB 3.2 Gen 1 Port : 2

Out-of-Band Management Port : 1

PCIe Expansion : 2

More details

Synology FlashStation FS3420
24-Bay 2.5" Rackmount SATA All-Flash NAS



Combine all-flash performance with Synology systems’ ease of use and reliability. The FS3420 is designed to tackle scenarios that require high throughput and low latency.



Hardware Specification :

Synology FlashStation FS3420 24-Bay 2.5" Rackmount All-Flash NAS

Synology NAS is shipped without hard drive & Rack Rail Kit

CPU

Intel Xeon D-1739 8-Core 3.0 (base) / 3.5 (turbo) GHz 64-bit

Hardware Encryption Engine (AES-NI)

System Memory

32 GB DDR4 ECC RDIMM

Memory Expandable up to 192 GB (32 GB x 6)

Drive Bays

24 Drive Bays Hot Swappable

Compatible Drive Type

2.5" SATA SSD

(hard drives not included)

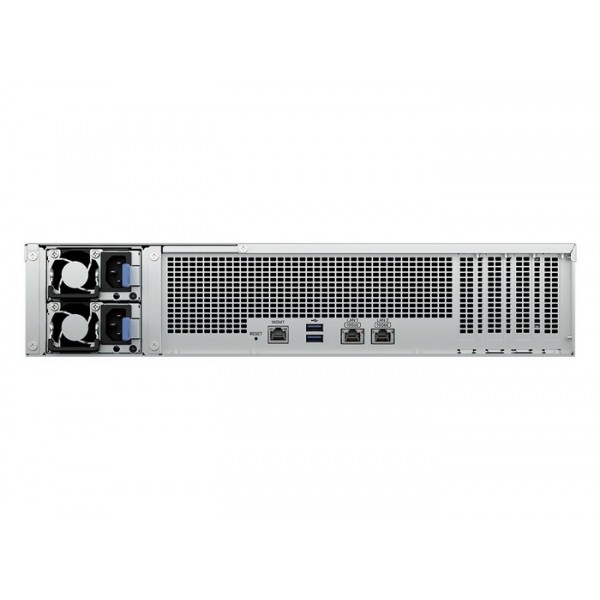

External Ports

LAN RJ-45 10GbE Port : 2

Out-of-Band Management LAN Port : 1

USB 3.2 Gen 1 Port : 2

PCIe Expansion

2 x Gen4 x8 slot (x8 link)

Power Supply Redundant Power Supply 2x 550 watts
Size 88 x 482 x 724 mm
Weight  15.0 kg
Warranty 5 year
