CPU : Intel Core i3-1320PE
Memory : 12 GB on board
M.2 Slot : 5 x M.2 2280
LAN Ports : 1 x 10GBASE-T, 1 x 2.5 Gigabit Ethernet
Thunderbolt 4 Port : 2
USB 3.2 Gen 2 Port : 2
USB 2.0 port Port : 1
HDMI Output : 1

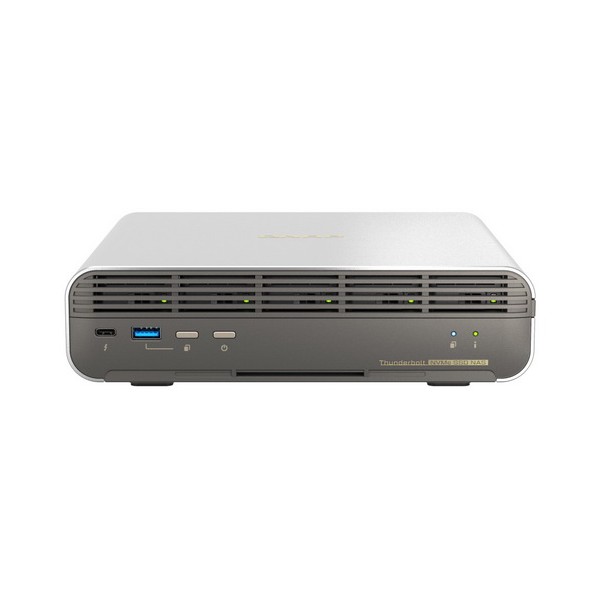

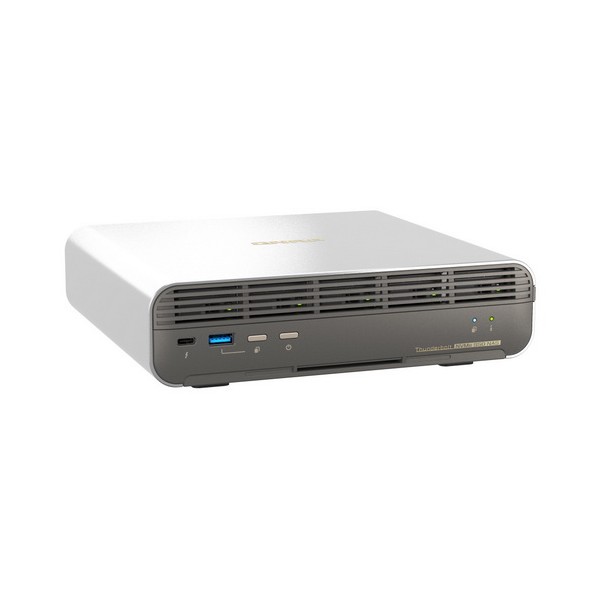

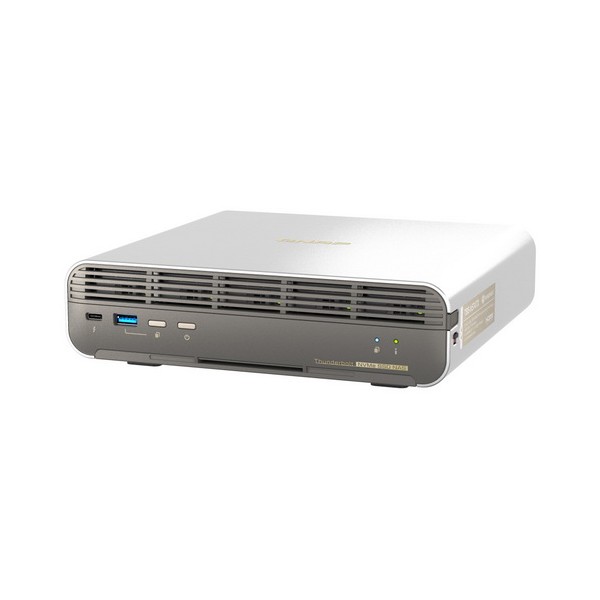

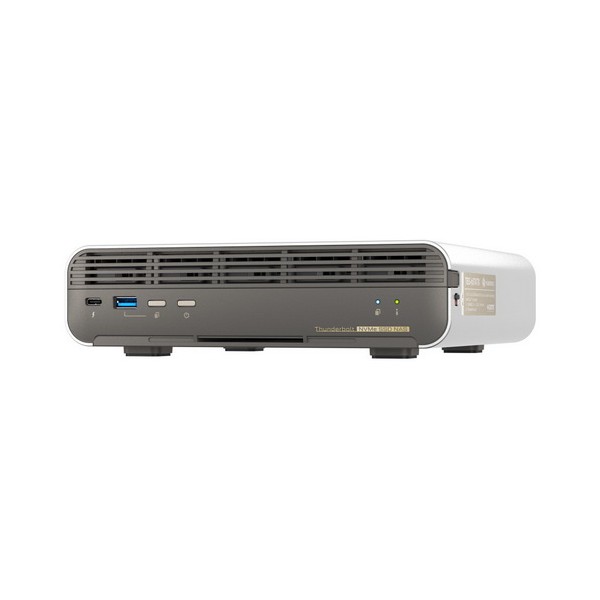

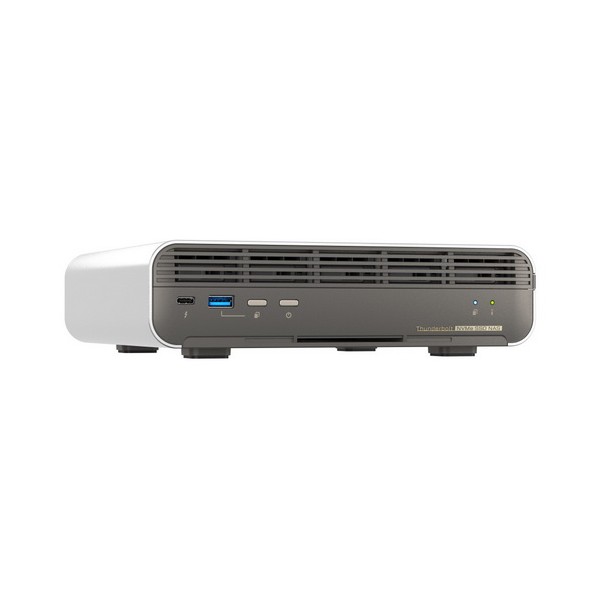

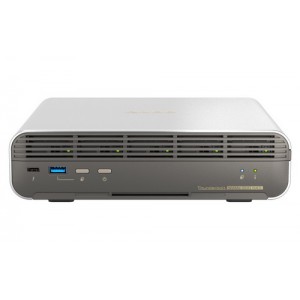

Designed for film sets, small studios, small-scale video production teams and SOHO users, the compact TBS-h574TX Thunderbolt 4 all-flash NASbook elevates video production for optimum productivity.
Hardware Specification :
QNAP TBS-h574TX-i3-12G
| CPU |
Intel Core i3-1320PE 8C(4P+4E)/12T up to 4.50GHz |
| System Memory |
12 GB on board (non-expandable) |
| Flash Memory | 5GB (Dual boot OS protection) |
| M.2 Slot |
5 x M.2 2280 PCIe Gen 3 slots (via pre-installed adapter) The system is shipped without SSD |
| LAN Port |
1 x 2.5 Gigabit (2.5G/1G/100M) 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
|
Thunderbolt Port |
2 x Thunderbolt 4 |
|
USB |
2 x USB 3.2 Gen 2 (10Gbps) Port 1 x USB 2.0 port |
| HDMI | 1, HDMI 1.4b |
| Buttons |
Status, USB copy, Reset |
| Form Factor | Set-top design |
| Dimensions | 60 × 215 × 199 mm |
| Weight | Net: 2.24 kg |
The system is shipped without SSD
