Synology 6-Bay Desktop NAS
CPU : AMD Ryzen V1500B 4-core 2.2 GHz
Memory : 4 GB DDR4 ECC (Up to 32GB)
Drive Bay : 6 (Up to 16)
M.2 Drive Slots : 2 (NVMe)
LAN Port : 4 x 1GbE
USB Port : 3 x USB 3.0
eSATA Port : 2
PCIe Expansion : 1 x Gen3 x8 slot
Data management and protection, for anyone
Synology DS1621+ is a powerful and compact 6-bay network attached storage solution designed to store and protect critical data assets. Today’s growing amount of unstructured data requires smarter and increasingly higher performance methods of storing, accessing, and collaborating. Designed for scalability, the DS1621+ enables you to start small, then expand as your data grows.
Hardware Specification :

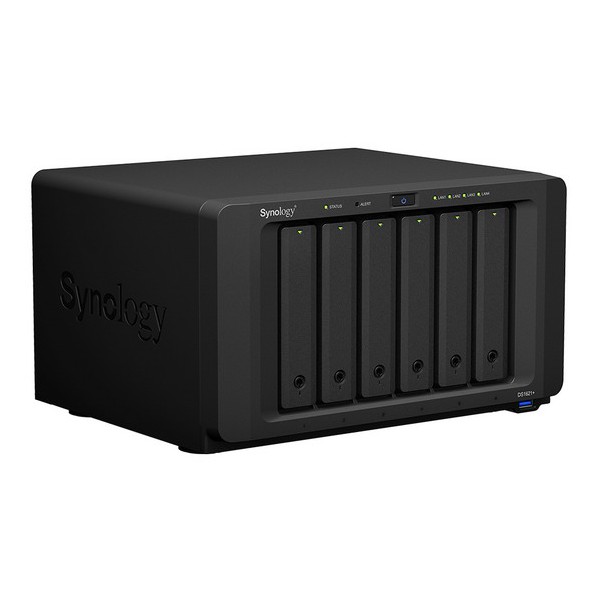

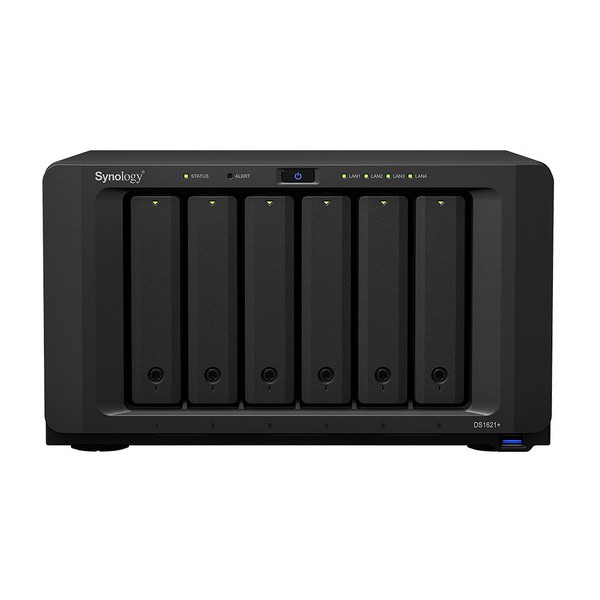

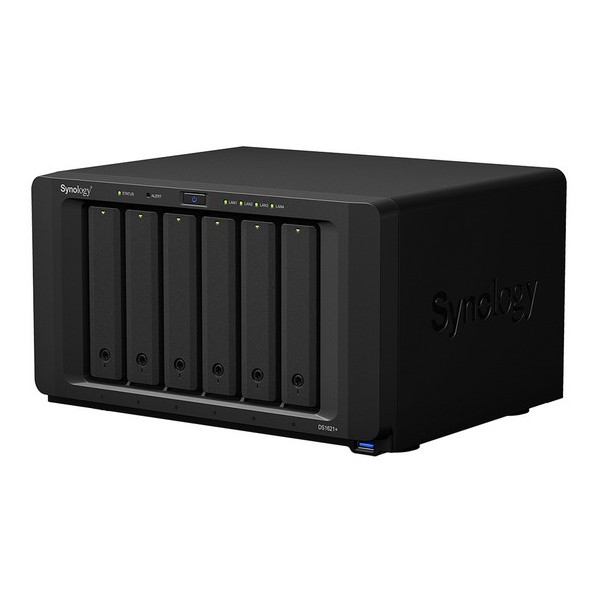

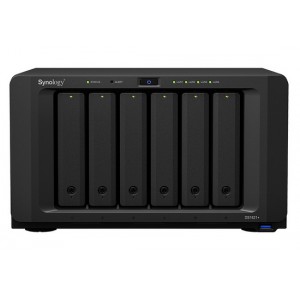

Synology DiskStation DS1621+ 6-Bay NAS
Synology NAS is shipped without hard drive
| CPU |
AMD Ryzen V1500B 4-core 2.2 GHz CPU Architecture 64-bit Hardware Encryption Engine (AES-NI) |
| System Memory |
4 GB DDR4 ECC SODIMM (1 x 4GB) Memory Expandable up to 32 GB (16 GB x 2) |
| Drive Bays |
6 Drive Bays Hot Swappable Maximum Drive Bays 16 with Expansion Unit |
| M.2 Drive Slots |
2 (NVMe) |
| Compatible Drive Type |
3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe SSD (M.2 & hard drives not included) |
| Supported RAID Type |
Synology Hybrid RAID / Basic / JBOD / RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10 |
| External Ports |

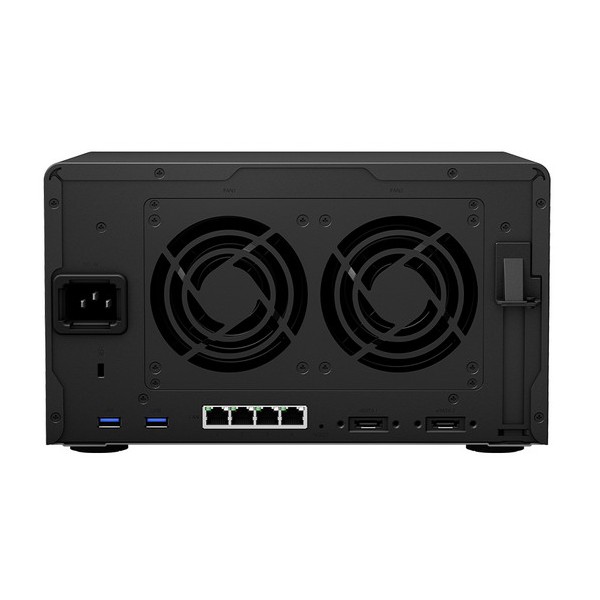

RJ-45 1GbE LAN Port : 4 (with Link Aggregation / Failover support) USB 3.0 Port : 3 eSATA Port : 2 |
| PCIe Expansion |
1 x Gen3 x8 slot (x4 link) |
| Maximum IP cam |
40 (including 2 Free License) |
| Virtualization |
VMware vSphere 6 with VAAI Windows Server 2016 Windows Server 2019 Citrix Ready OpenStack |
| Power Supply Unit | 250W |
| Size | 166 x 282 x 243 mm |
| Weight | 5.1 kg |
| Warranty | 3 year |
