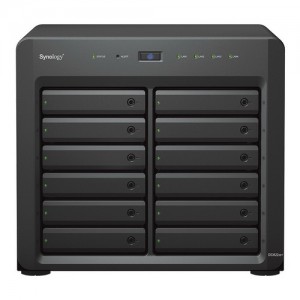

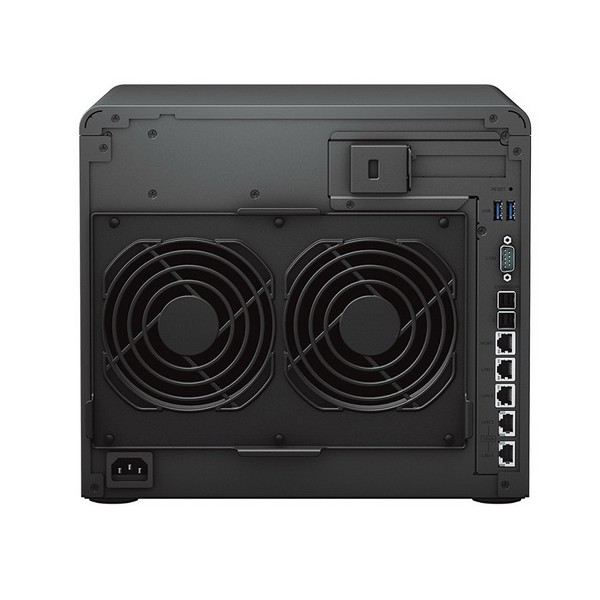

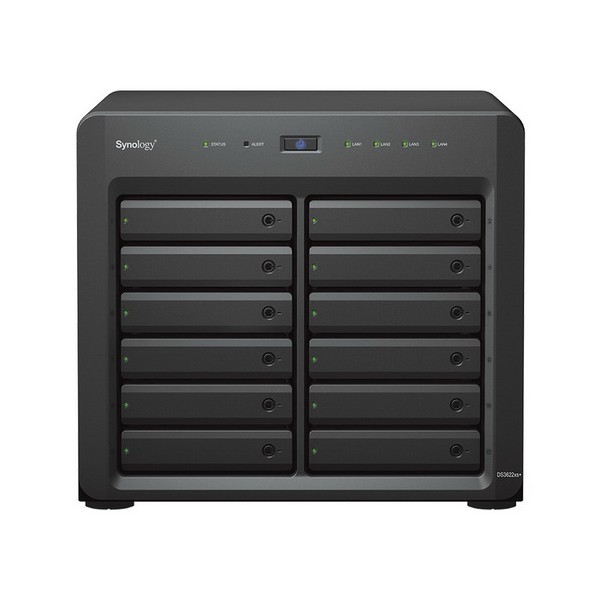

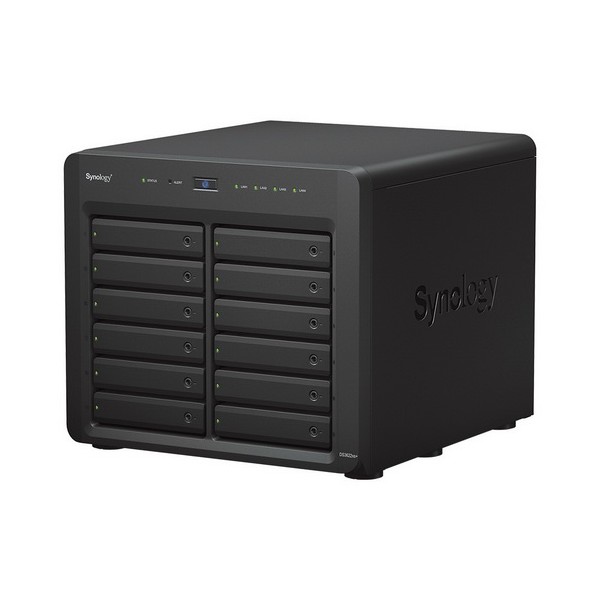

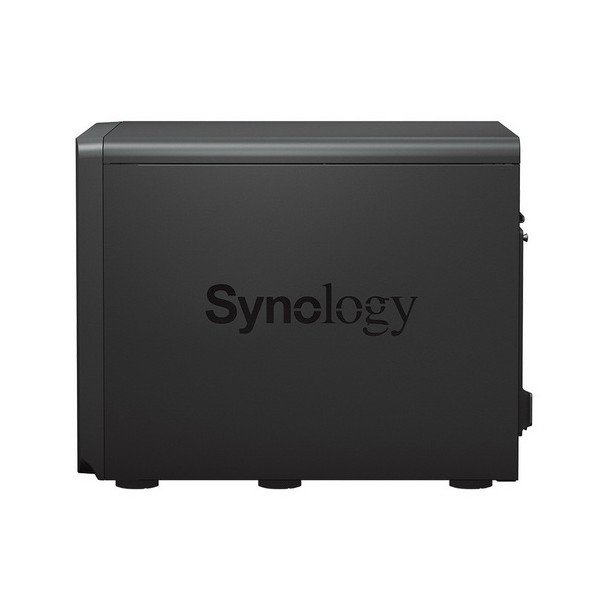

Synology DiskStation DS3622xs+ 12-Bay NAS

Synology 12-Bay Desktop NAS

CPU : Intel Xeon D-1531 6-Core 2.2 GHz

Memory : 16 GB DDR4 ECC (Up to 48GB)

Drive Bay : 12 (Up to 36)

LAN Port : 2 x RJ-45 1GbE

LAN Port : 2 x RJ-45 10GbE

Management LAN Port : 1

USB Port : 2 x USB 3.2 Gen 1

Expansion Port : 2

PCIe Expansion : 1 x Gen3 x8 slot

More details


111,680.00 ฿ tax excl.

Synology DiskStation DS3622xs+
12-Bay NAS



Powerful and high-capacity storage that fits in any environment



The 12-bay Synology DS3622xs+ is a powerhouse NAS capable of fitting into small and medium business environments with intensive and multi-user workloads. Its high capacity, scalability, and processing power make it ideal for VM and container storage, for lightning-fast file sharing, and as a network video recorder for large surveillance deployments. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video.



Hardware Specification :

Synology DiskStation DS3622xs+ 12-Bay NAS

Synology NAS is shipped without hard drive

CPU

Intel Xeon D-1531 6-Core 2.2 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine (AES-NI)

System Memory

16 GB DDR4 ECC SO-DIMM (2 x 8GB)

Memory Expandable up to 48 GB (16 GB + 16 GB x 2)

Drive Bays

12 Drive Bays Hot Swappable

Maximum Drive Bays 36 with Expansion Unit

Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

(hard drives not included)

Supported RAID Type

RAID F1 / Basic / JBOD /

RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10

External Ports

RJ-45 1GbE LAN Port : 2 (with Link Aggregation / Failover support)

RJ-45 10GbE LAN Port : 2 (with Link Aggregation / Failover support)

Management LAN Port : 1

USB 3.2 Gen 1 Port : 2

Expansion Port : 2

PCIe Expansion

1 x Gen3 x8 slot (x8 link)

Maximum IP cam

90 (including 2 Free License)

Virtualization

VMware vSphere with VAAI

Windows Server 2016

Windows Server 2019

Citrix Ready

OpenStack

Power Supply Unit  550 W
Size 270 x 300 x 340 mm
Weight  9.8 kg
Warranty 5 year
