ASUSTOR 6-Bay Desktop NAS
CPU : AMD Ryzen V3C14 Quad-Core 2.3GHz
Memory : 16GB ECC DDR5
Drive Bay : 6 (Max.18)
M.2 Drive Slots : 4
LAN Port : 2 x 5 Gigabit
LAN Port : 2 x 10 Gigabit
USB Port : 3 x USB 3.2 Gen 2
USB Port : 2 x USB 4 ports
PCIe Slot : 1
The Lockerstor Gen3 series is ASUSTOR’s fastest NAS ever! The combination of AMD’s Ryzen Embedded SoC, M.2 SSDs using PCIe 4.0, USB4, and dual 10GbE to ensure everything you want to do with your NAS is nothing short of extremely fast. With four M.2 slots for NVMe SSDs and up to ten bays for HDDs, the Lockerstor Gen3 series ensure that you get the best of both speed and capacity.
Hardware Specification :

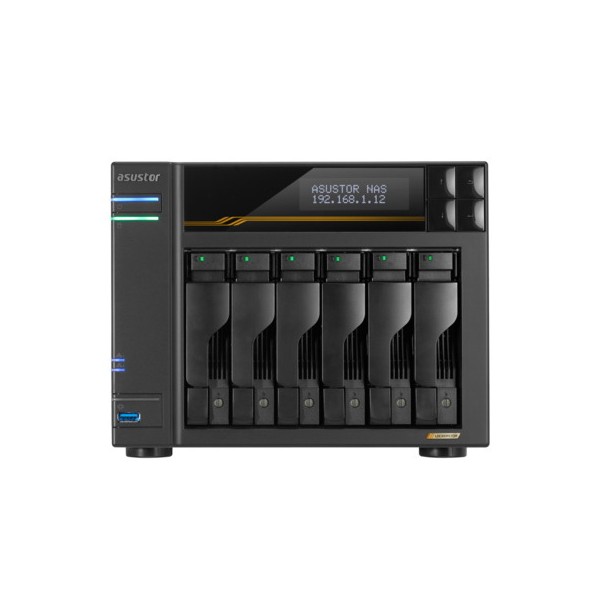

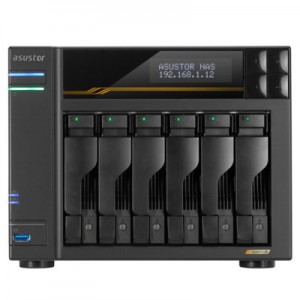

ASUSTOR AS6806T 6-Bay NAS
ASUSTOR NAS is shipped without hard drive
| CPU |
CPU Model : AMD Ryzen V3C14 CPU Architecture : x64 64-bit CPU Frequency : Quad-Core 2.3GHz (burst up 3.8 GHz) |
| System Memory |
Memory : 16GB ECC DDR5-4800 SO-DIMM Memory Module Pre-installed : 16GB (1x 16GB) Total Memory Slots : 2 Memory Expandable up to : 64GB |
| Flash Memory |
8GB eMMC |
| Drive Bays |
6-Bay (Max.18 with Expansion Unit) |
| Compatible Drive Type |
3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe (hard drives not included) |
| M.2 Drive Slots (SSD Cache) |
4x M.2 |
| External Ports |

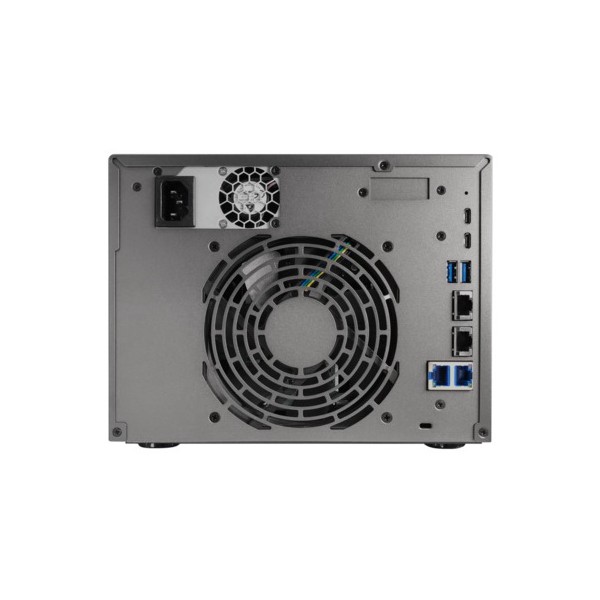

2x 5 Gigabit Ethernet (5G/2.5G/1G/100M) 2x 10 Gigabit Ethernet (10G/2.5G/1G/100M) 3x USB 3.2 Gen 2 ( 10Gbps ) Type-A 2x USB4 ports (20Gbps per channel, 40Gbps per port) 1x PCIe Expansion Slots for optional expansion 10 GbE card |
| Size | 185.5 x 233 x 230 mm |
| Weight | 4.4 kg |
| Warranty | 3 year |
