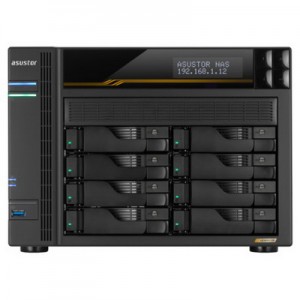

ASUSTOR AS6808T LOCKERSTOR 8 Gen3 8-Bay Tower NAS

ASUSTOR 8-Bay Desktop NAS

CPU : AMD Ryzen V3C14 Quad-Core 2.3GHz

Memory : 16GB ECC DDR5

Drive Bay : 8 (Max.20)

M.2 Drive Slots : 4

LAN Port : 2 x 5 Gigabit

LAN Port : 2 x 10 Gigabit

USB Port : 3 x USB 3.2 Gen 2

USB Port : 2 x USB 4 ports

PCIe Slot : 1

More details

ASUSTOR LOCKERSTOR 8 Gen3 (AS6808T)
8-Bay Tower NAS



The Lockerstor Gen3 series is ASUSTOR’s fastest NAS ever! The combination of AMD’s Ryzen Embedded SoC, M.2 SSDs using PCIe 4.0, USB4, and dual 10GbE to ensure everything you want to do with your NAS is nothing short of extremely fast. With four M.2 slots for NVMe SSDs and up to ten bays for HDDs, the Lockerstor Gen3 series ensure that you get the best of both speed and capacity.



Hardware Specification :

ASUSTOR AS6808T 8-Bay NAS

ASUSTOR NAS is shipped without hard drive

CPU

CPU Model : AMD Ryzen V3C14

CPU Architecture : x64 64-bit

CPU Frequency : Quad-Core 2.3GHz (burst up 3.8 GHz)

System Memory

Memory : 16GB ECC DDR5-4800 SO-DIMM

Memory Module Pre-installed : 16GB (1x 16GB)

Total Memory Slots : 2

Memory Expandable up to : 64GB

Flash Memory

8GB eMMC

Drive Bays

8-Bay (Max.20 with Expansion Unit)

Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

M.2 2280 NVMe

(hard drives not included)

M.2 Drive Slots (SSD Cache)

4x M.2

External Ports

2x 5 Gigabit Ethernet (5G/2.5G/1G/100M)

2x 10 Gigabit Ethernet (10G/2.5G/1G/100M)

3x USB 3.2 Gen 2 ( 10Gbps ) Type-A

2x USB4 ports (20Gbps per channel, 40Gbps per port)

1x PCIe Expansion Slots for optional expansion 10 GbE card

Size 215.5 x 293 x 230 mm
Weight  6.45 kg
Warranty 3 year
