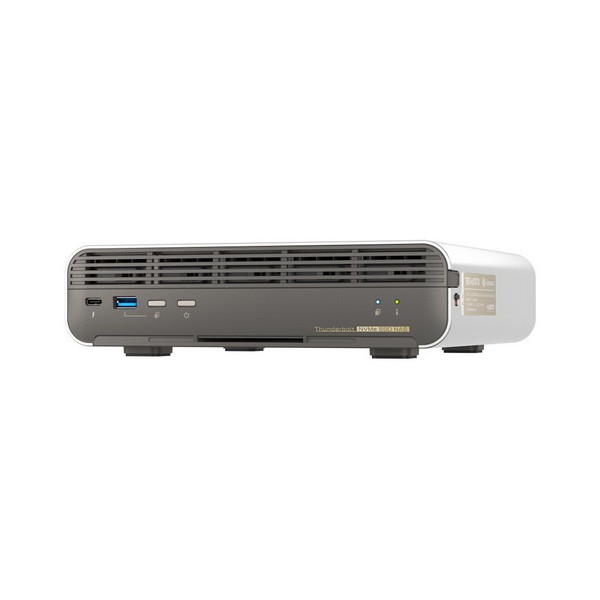

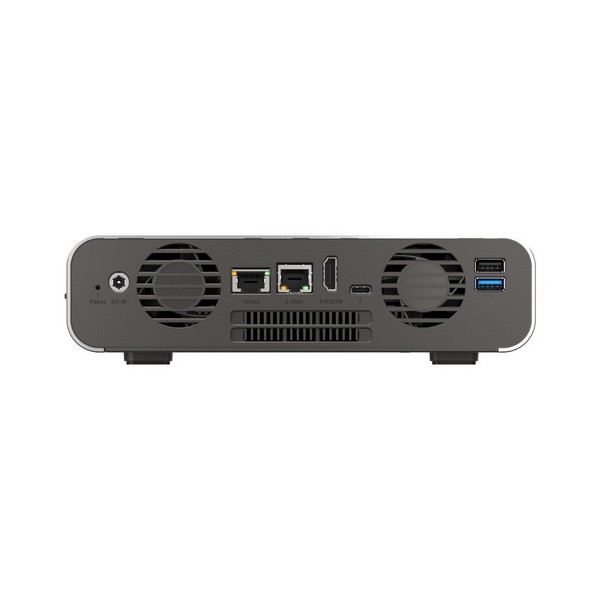

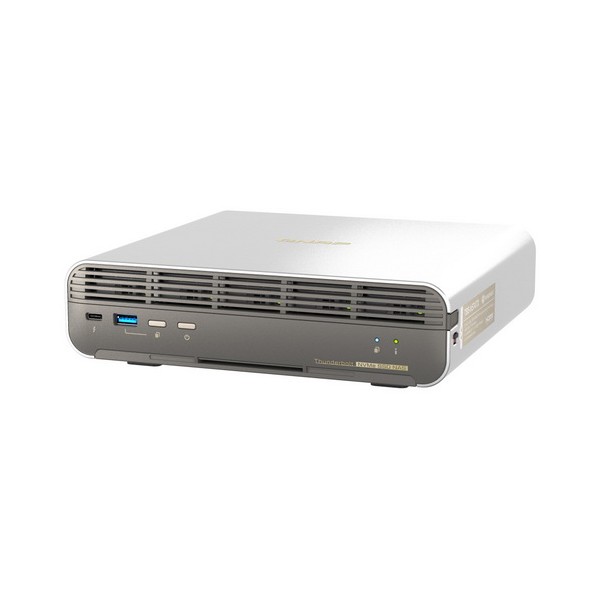

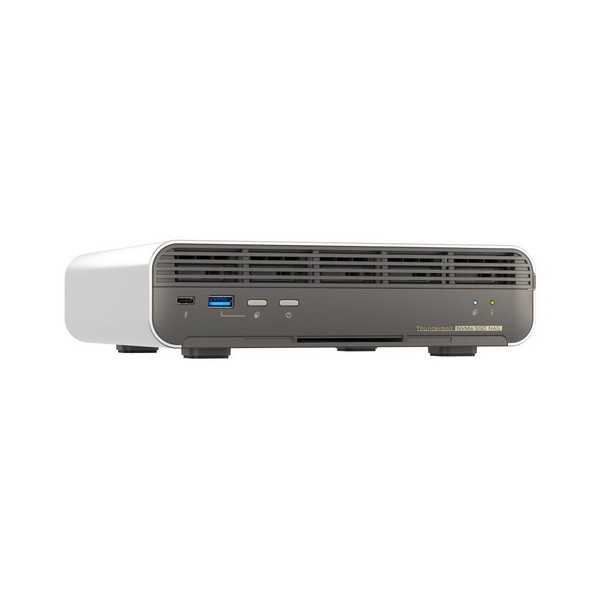

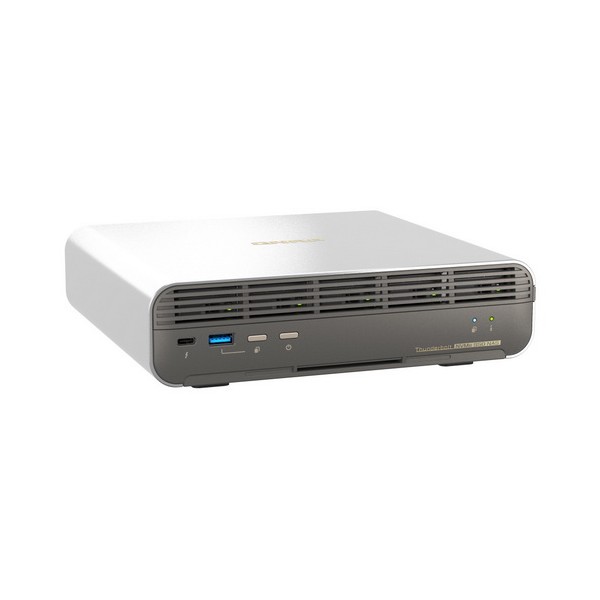

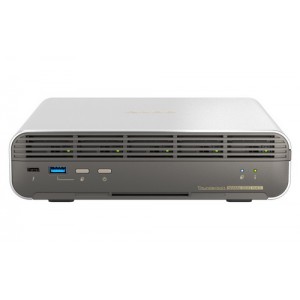

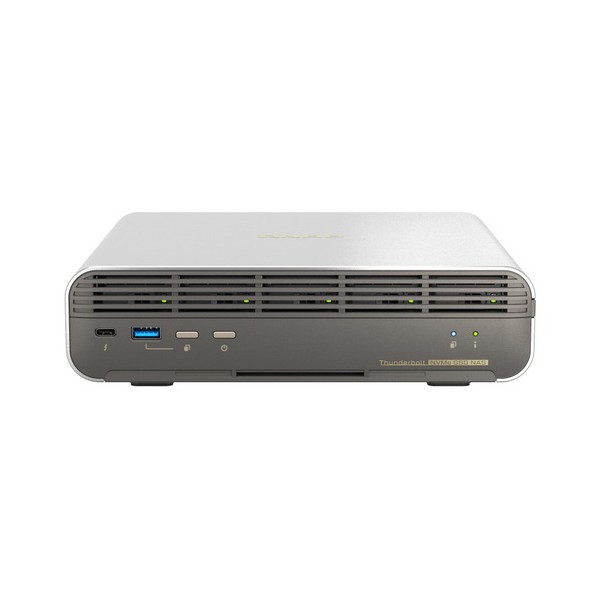

QNAP TBS-h574TX-i5-16G Thunderbolt 4 all-flash NASbook

CPU : Intel Core i5-1340PE

Memory : 16 GB on board

M.2 Slot : 5 x M.2 2280

LAN Ports : 1 x 10GBASE-T, 1 x 2.5 Gigabit Ethernet

Thunderbolt 4 Port : 2

USB 3.2 Gen 2 Port : 2

USB 2.0 port Port : 1

HDMI Output : 1

More details


73,400.00 ฿ tax excl.

QNAP TBS-h574TX-i5-16G Thunderbolt 4 all-flash NASbook



Designed for film sets, small studios, small-scale video production teams and SOHO users, the compact TBS-h574TX Thunderbolt 4 all-flash NASbook elevates video production for optimum productivity.




Hardware Specification :

QNAP TBS-h574TX-i5-16G

CPU

Intel Core i5-1340PE 12C(4P+8E)/16T up to 4.50GHz
CPU Architecture : 64-bit x86
Graphic Processors : Intel Iris Xe Graphics eligible
Floating Point Unit : Yes
Encryption Engine : (AES-NI)
Hardware-accelerated Transcoding : Yes

System Memory

16 GB on board (non-expandable)

Flash Memory  5GB (Dual boot OS protection)
M.2 Slot

5 x M.2 2280 PCIe Gen 3 slots (via pre-installed adapter)

The system is shipped without SSD

LAN Port

1 x 2.5 Gigabit (2.5G/1G/100M)

1 x 10GBASE-T (10G/5G/2.5G/1G/100M)

Thunderbolt Port

2 x Thunderbolt 4

USB

2 x USB 3.2 Gen 2 (10Gbps) Port

1 x USB 2.0 port

HDMI 1, HDMI 1.4b
Buttons

Status, USB copy, Reset

Form Factor Set-top design
Dimensions 60 × 215 × 199 mm
Weight  Net: 2.24 kg



The system is shipped without SSD
