Synology UC3200 Unified Controller 12-Bay Active-active IP SAN

Synology 12-Bay Unified Controller

CPU : Intel Xeon D-1521 Quad-Core 2.4 GHz

Memory : 8 GB DDR4 ECC (Up to 64 GB)

Drive Bay : 12 (Up to 36)

1GbE Port : 2 x RJ-45 1GbE

10GbE Port : 1 x RJ-45 1GbE

PCIe Expansion : 1 x Gen3 x8 slot

More details


225,600.00 ฿ tax excl.

Synology UC3200 Unified Controller
12-Bay Active-active IP SAN



Delivering reliable, highly available iSCSI services



Realizing high-availability architecture in just one single chassis, the two controllers in Synology UC3200 work simultaneously and can automatically fail over to each other in the event of disaster, delivering services without any interruptions.



DSM UC, an operating system designed to ease the learning curve, allows you to manage the two controllers from one single portal. The built-in monitor applications display the status at a glance and send prompt notifications when important events occur, so that IT administrators can stay alert to potential problems and respond in the shortest time possible.



Hardware Specification :

Synology UC3200 Unified Controller 12-Bay Active-active IP SAN

Synology NAS is shipped without hard drive & Rack Rail Kit

Number of Controller Module

2

CPU

Intel Xeon D-1521 Processor
(Quad Core 6M Cache, 2.4 GHz turbo up to 2.7GHz)

Hardware Encryption Engine (AES-NI)

System Memory

8 GB DDR4 ECC UDIMM (8 GB x 1)

Memory Expandable up to 64 GB (16 GB x 4)

Drive Bays

12 Drive Bays Hot Swappable

Maximum Drive Bays 36 (RXD1219sas)

Compatible Drive Type

3.5" SAS HDD

2.5" SAS HDD

2.5" SAS SSD

(hard drives not included)

Supported RAID Type

RAID F1 / Basic / JBOD /

RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10

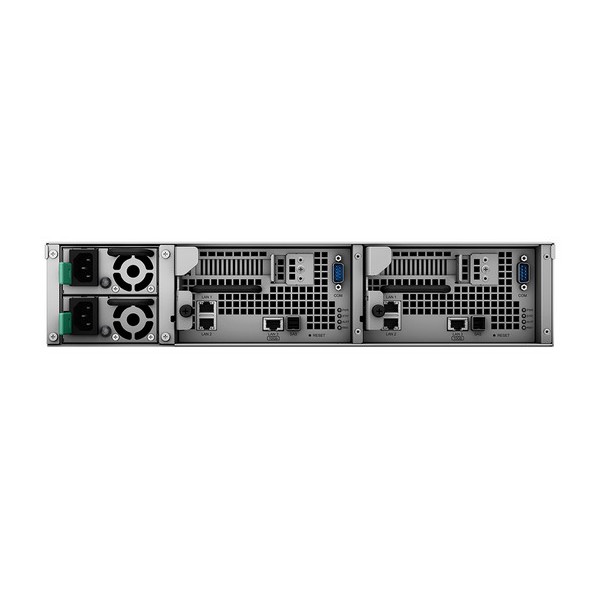

External Ports

RJ-45 1GbE LAN Port : 2 (with Link Aggregation / Failover support)

RJ-45 10GbE LAN Port : 1 (with Link Aggregation / Failover support)

Expansion Port : 1

PCIe Expansion

1 x Gen3 x8 slot (x8 link)

Storage Management

Maximum Volume : 32

Maximum iSCSI Target : 128

Maximum iSCSI LUN : 128

Advanced LUN (Clone/Snapshot) Support : Yes

Maximum Snapshots per Advanced LUN : 256

Maximum Number of Replication : 32

Maximum of System Snapshots : 4,096

SSD Read / Write Cache : Yes

SSD TRIM : Yes

Maximum Local User Accounts : 65

Virtualization

VMware vSphere 6 with VAAI

Windows Server 2016

Windows Server 2019

Citrix Ready

OpenStack

Power Supply Unit  500W (Redundant Power Supply)
Size 88 x 482 x 724 mm
Weight  19.7 kg
Warranty 5 year
