Synology 12-Bay Rackmount NAS
CPU : Intel Xeon D-1521 Quad Core 2.4 GHz (64-bit)
Memory : 8 GB DDR4 ECC (Up to 64 GB)
Drive Bay : 12 (Up to 36)
LAN Port : 4 x RJ-45 1GbE
USB Port : 2 x USB 3.0
PCIe Expansion : 2 x Gen3 x8 slot
Highly scalable NAS designed for virtualization, data-intensive applications and service continuity for large scale businesses
Synology RS3618xs is a reliable, superior-performance network-attached storage solution for large-scale enterprises with demanding business applications. It simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance.
Hardware Specification :

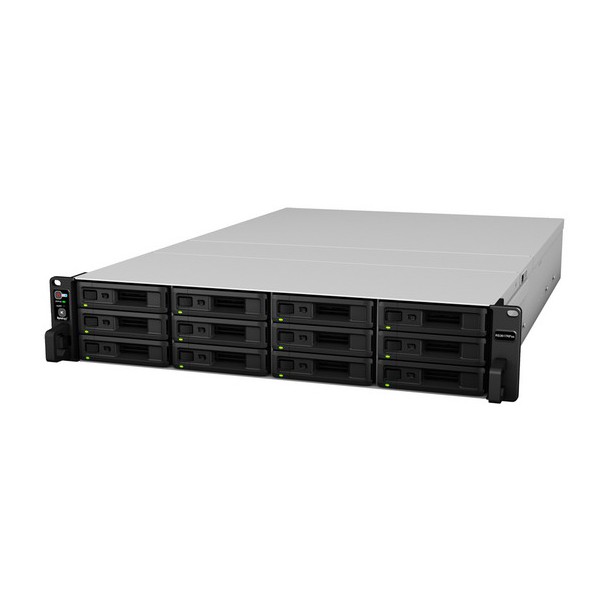

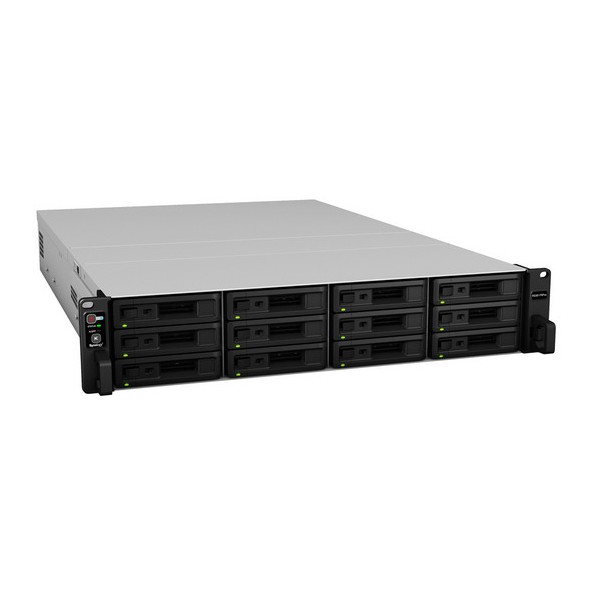

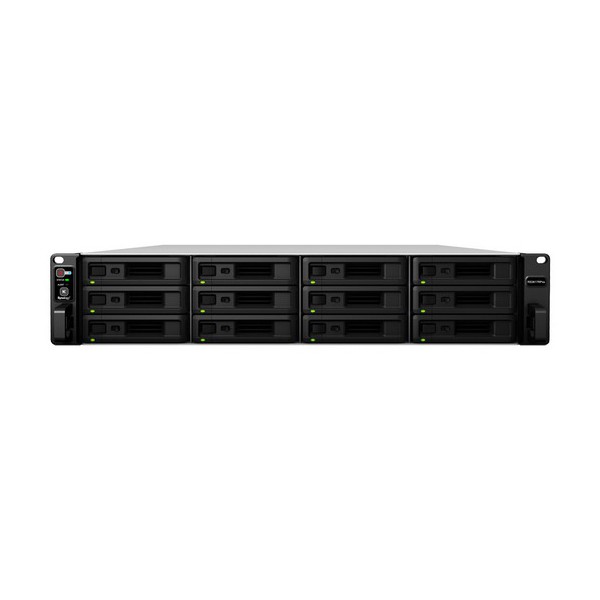

Synology RackStation RS3618xs 12-Bay Rackmount NAS
Synology NAS is shipped without hard drive & Rack Rail Kit
| CPU |
Intel Xeon D-1521 Quad Core 2.4 (base) / 2.7 (turbo) GHz Hardware Encryption Engine (AES-NI) |
| System Memory |
8 GB DDR4 ECC UDIMM (1 x 8GB) Memory Expandable up to 64 GB (16 GB x 4) |
| Drive Bays |
12 Drive Bays Hot Swappable Maximum Drive Bays with 36 Expansion Units |
| Compatible Drive Type |
3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD (hard drives not included) |
| Supported RAID Type |
RAID F1 / Basic / JBOD / RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10 |
| External Ports |
RJ-45 1GbE LAN Port : 4 (with Link Aggregation / Failover support) USB 3.0 Port : 2 Expansion Port : 1 |
| PCIe Expansion |
2 x Gen3 x8 slot (black, x4 link) M2D18 - Dual M.2 SATA/NVMe SSD adapter card for SSD cache |
| Maximum IP cam |
75 (including 2 Free License) |
| Virtualization |
VMware vSphere 6 with VAAI Windows Server 2012 Windows Server 2012 R2 Windows Server 2016 Citrix Ready OpenStack |
| Power Supply Unit | 500W |
| Size | 88 x 482 x 724 mm |
| Weight | 14.5 kg |
| Warranty | 5 year |
