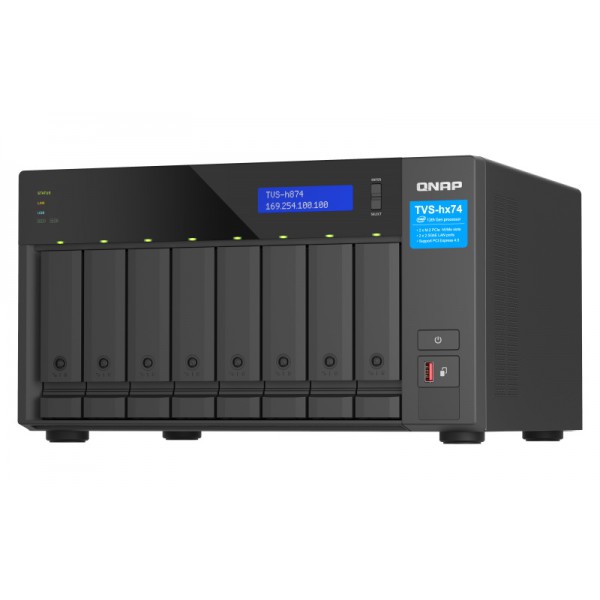

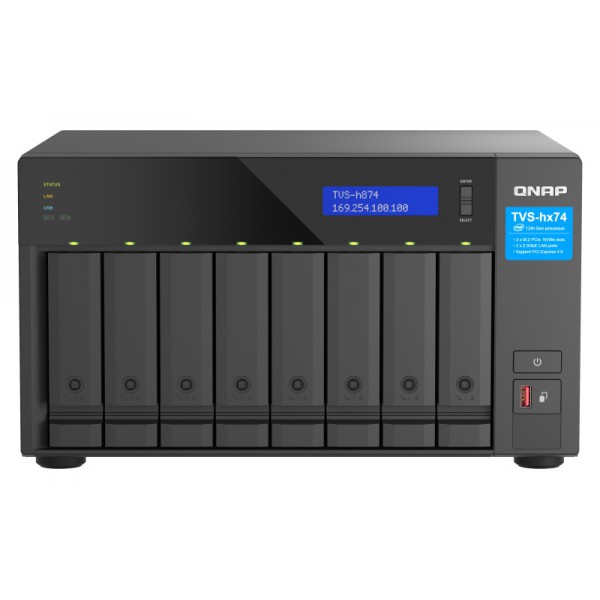

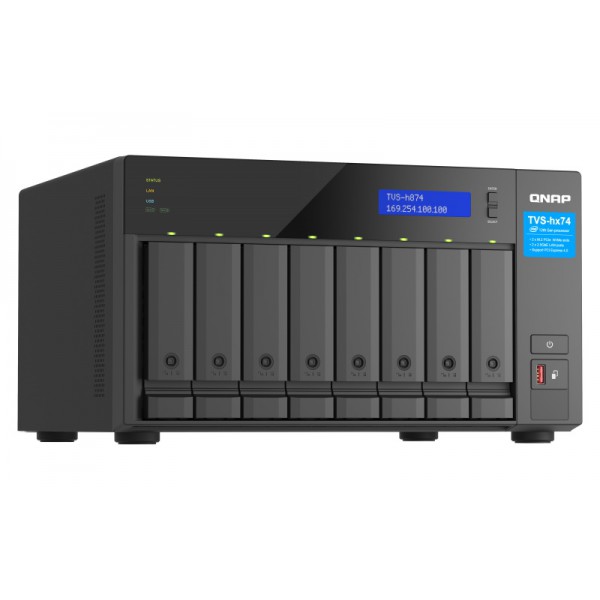

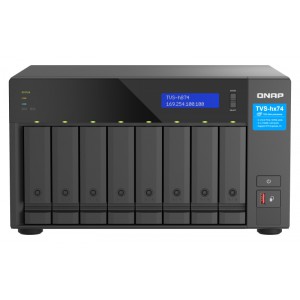

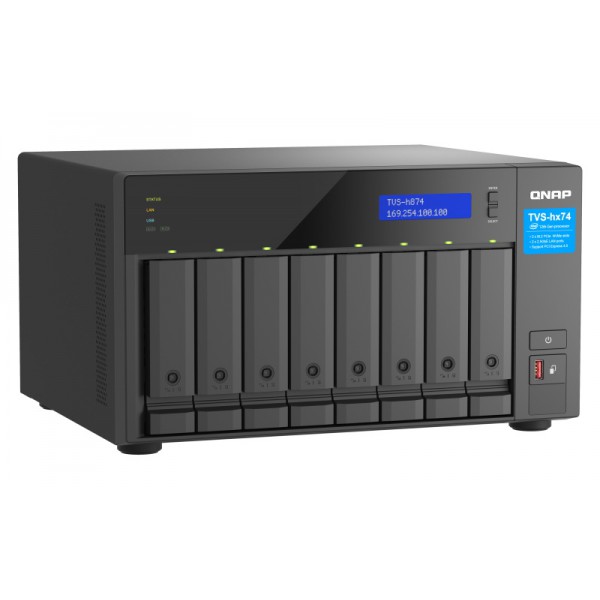

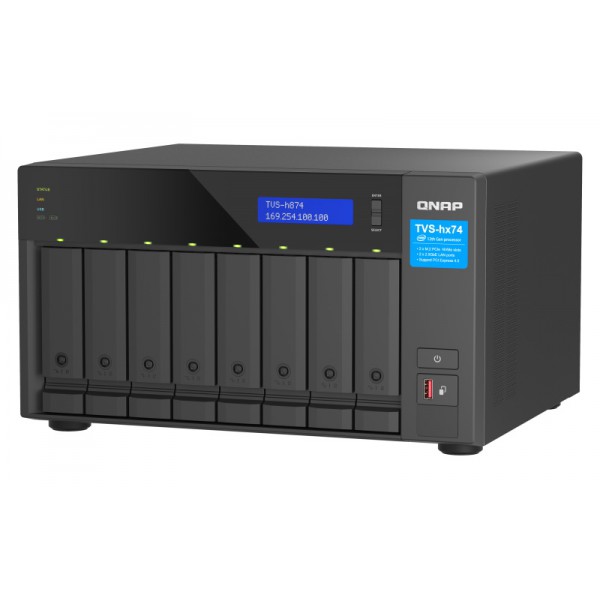

QNAP 8-Bay Tower NAS
CPU : Intel Core i9 16-core/24-thread Processor
Memory : 64 GB DDR4 (Max.64 GB)
M.2 Slot : 2 x M.2 2280
LAN : 2 x 2.5 Gigabit Ethernet Port
PCIe : 2
USB : 1 x Type-C USB 3.2 Gen 2 ; 2 x Type-A USB 3.2 Gen 2
With an Intel Core multicore-core Processor to support the ZFS-based QuTS hero operating system, the TVS-h874 SMB NAS ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and SSD optimization.
Hardware Specification :

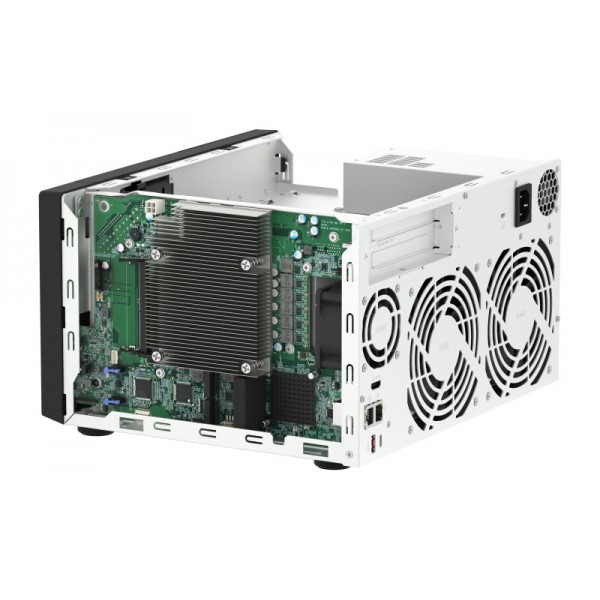

QNAP TVS-h874X-i9-64G 8-Bay Tower NAS
| CPU |
Intel Core i9 16-core (8P+8E) /24-thread Processor |
| CPU Architecture |
64-bit x86 |
| Graphic Processors |
Intel UHD Graphics 770 |
| Floating Point Unit |
Yes |
| Encryption Engine |
Yes (AES-NI) |
| Hardware-accelerated Transcoding |
Yes |
| System Memory | 64 GB SODIMM DDR4 (2 x 32 GB) |
| Maximum Memory | 64 GB ( 2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Hard Disk Drive |
8 x 3.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without Hard Disk |
| Drive Compatibility |
• 3.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives |
| Hot-swappable |
Yes |
| M.2 Slot |
2 x M.2 2280 PCIe Gen 4 x4 slots |
| SSD Cache Acceleration Support |
Yes |
| LAN Port |
2 x 10GBASE-T 2 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M) |
| USB Port |
1 x Type-C USB 3.2 Gen 2 10Gbps 2 x Type-A USB 3.2 Gen 2 10Gbps |
| PCIe Slot |
2 x Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x4 |
| HDMI Output |
1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
| Form Factor | Tower |
| Dimension | 188.2 x 329.3 x 279.6 mm |
| Power Supply Unit | 250W, 100-240V |
QNAP NAS is shipped without Hard Disk / 3 years warranty
