QNAP 8-Bay 10GbE Rackmount NAS
CPU : Annapurna Labs Alpine AL-324 Quad-Core 1.7 GHz
Memory : 4 GB DDR4
LAN : 2 x Gigabit + 2 x 10GbE SFP+
Redundant Power Supply (2 x 250W)
The TS-832XU-RP is built to deliver high performance, flexible expansion capabilities and versatile applications at an affordable and cost-effective price for small/medium-sized businesses. Two 10GbE SFP+ ports are capable of high-speed transmission of time-critical business data and a PCI Express (PCIe) 2.0 ×2 slot (×4 length) provides flexibility for expanding connectivity and/or storage with M.2 SATA/PCIe NVMe SSDs, via QNAP's QM2 expansion cards. The TS-832XU-RP can be deployed to suit various needs for data storage, file backup, disaster recovery, containerized applications, surveillance, and more. The TS-832XU-RP is also equipped with a redundant power supply to ensure uninterrupted services.
Hardware Specification :

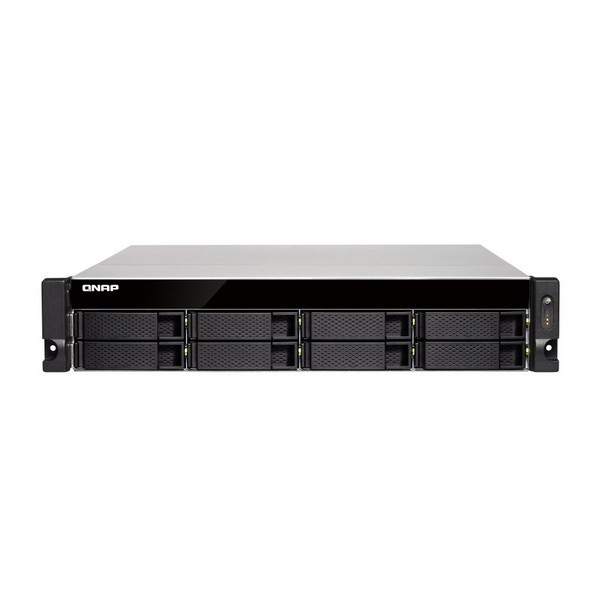

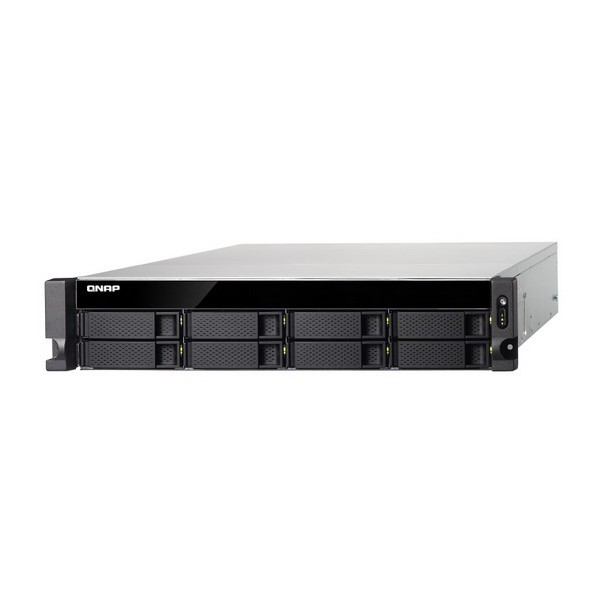

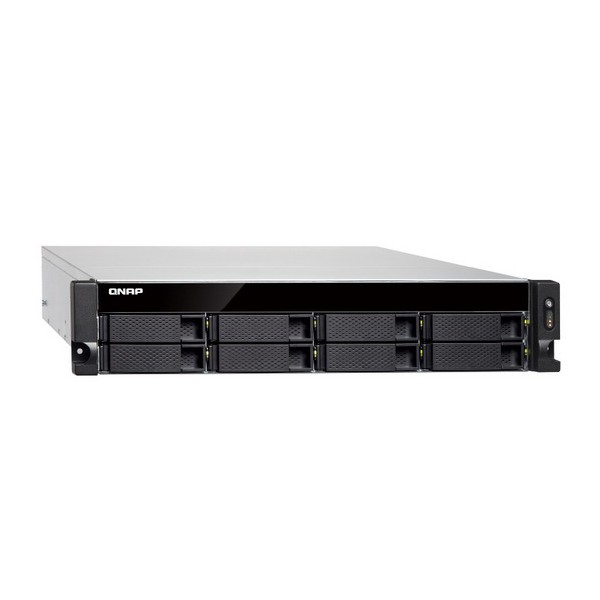

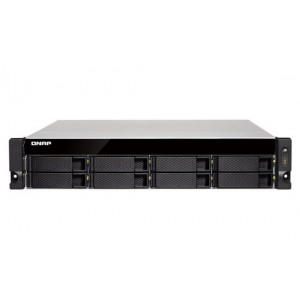

QNAP TS-832XU-RP-4G 8-Bay Rackmount NAS with Redundant Power Supply
| CPU |
Annapurna Labs Alpine AL-324 ARMv8 Cortex-A57 Quad-Core 1.7 GHz processor, 64-bit |
| Encryption Engine |
Yes |
| System Memory | 4GB DDR4 (1 x 4GB) / Max. 16 GB (1 x 16GB) |
| Hard Disk Drive |
8 x 3.5-inch SATA 6 Gbps bays The system is shipped without Hard Disk |
| Drive Compatibility |
• 3.5-inch SATA 6Gb/s HDD • 2.5-inch SATA 6Gb/s HDD • 2.5-inch SATA 6Gb/s SSD |
| SSD Cache Acceleration |
Drive bays 1 to 8 Optional: SSDs on QM2 PCIe expansion card |
| LAN Port |

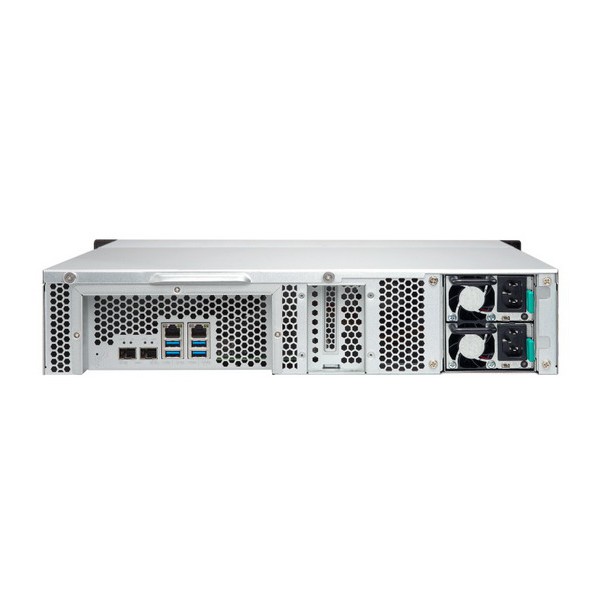

• 2 x 10GbE SFP+ 10 Gigabit Ethernet Port • 2 x RJ45 Gigabit Ethernet Port |
| PCIe Slot |
Slot 1: 2.0 x2 |
| USB Port |
4 x USB 3.1 Gen 1 Type-A |
| Form Factor | 2U, rack mountable |
| Power Supply | 2x ATX 250W (Redundant Power Supply) |
| Dimension | 89 x 482 x 534 mm |
QNAP NAS is shipped without Hard Disk / 2 years warranty
Rack Rail Kit is option to buy
