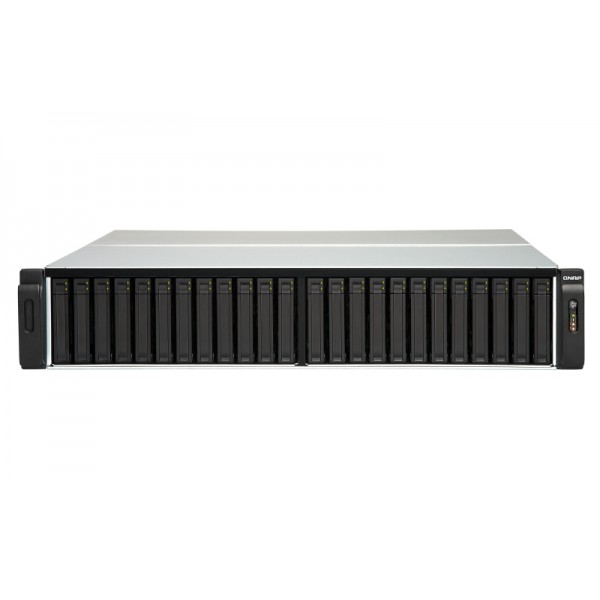

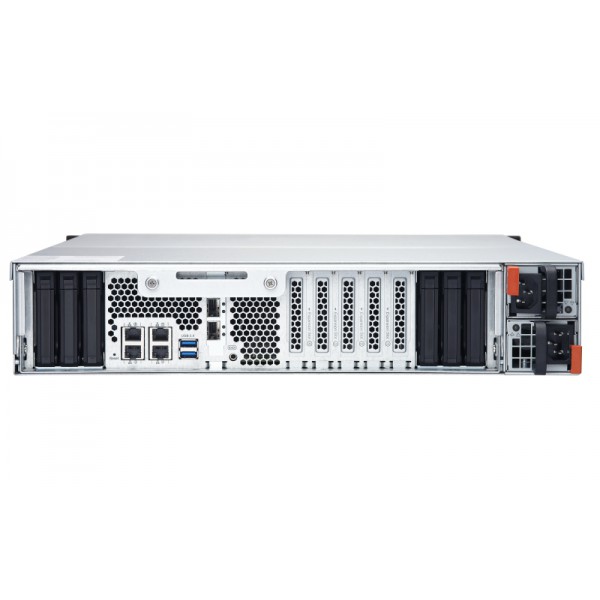

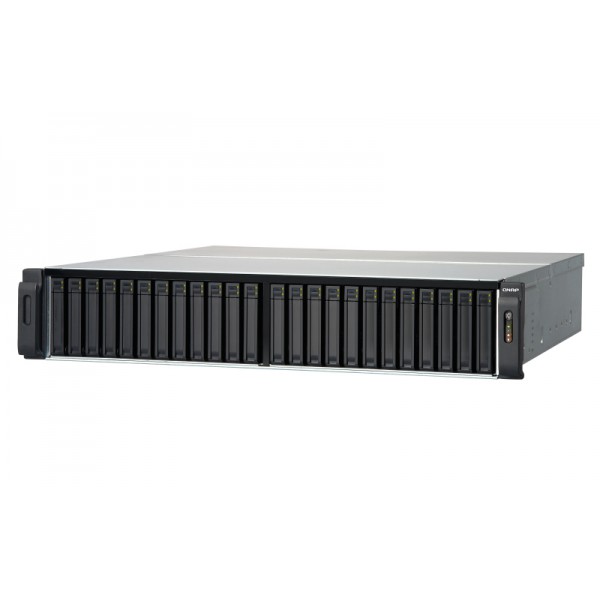

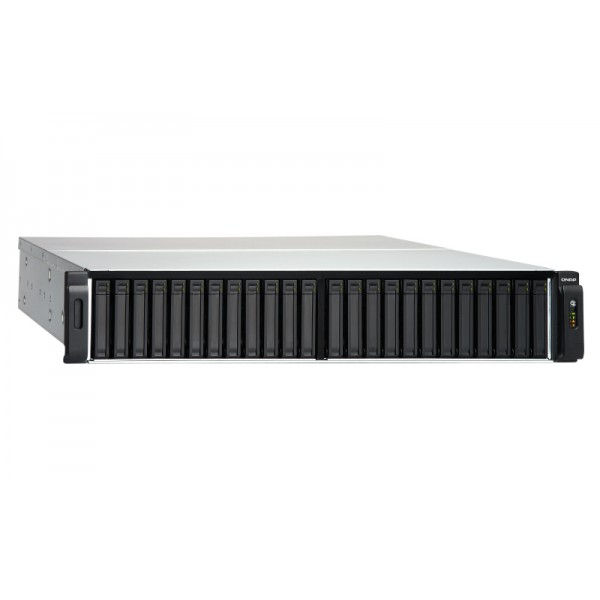

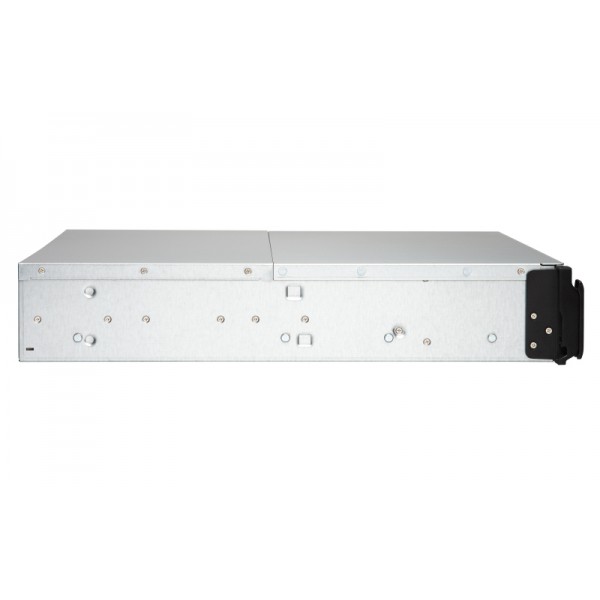

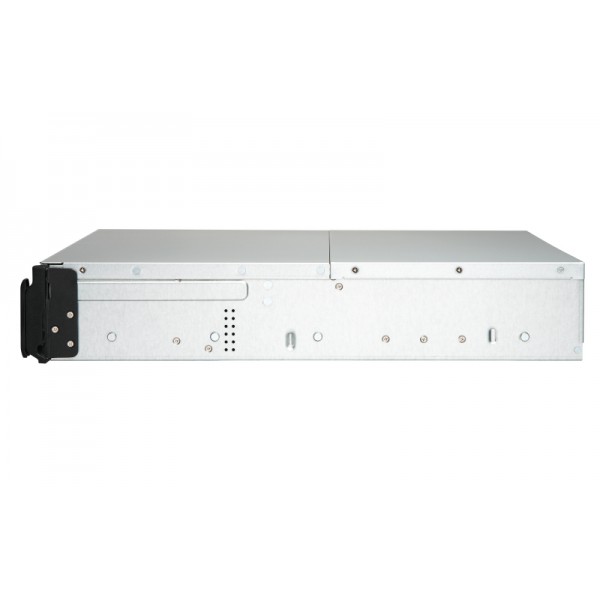

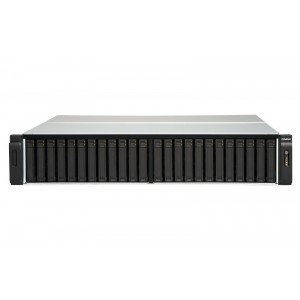

QNAP TES-3085U-D1531-16GR 30-bay Rackmount NAS with Intel Xeon D Processor

Rackmount / Redundant Power Supply

CPU : Intel Xeon D-1531 Processor

Memory : 16 GB ECC RAM (Max. 128 GB)

Harddisk Tray : 24-Bay + 6-Bay

LAN : 2x 10GbE SFP+ / 4x Gigabit

PCIe Slot : 4

USB Port : 2 x USB 3.0

More details


207,700.00 ฿ tax excl.

QNAP TES-3085U-D1531-16GR

Dual OS options 30-bay Rackmount NAS



Powered by an Intel Xeon D processor, the powerful enterprise-class TES-3085U is open for two operating systems – either the FreeBSD-based QES or Linux-based QTS. While QES supports ZFS for the utmost reliability and allows near-limitless snapshots, block-level data deduplication and real-time data compression, QTS features Qtier Technology, SSD cache, and an abundance of value-added apps to realize storage efficiency and diverse usage applications. The TES-3085U gives the flexibility to choose from two operating systems, enabling businesses to deploy proper operating systems on multiple TES-3085U based on their needs and goals in different stages.


Price is excluded A03-57 Rail Kit.

QNAP NAS is shipped without Hard Disk



Hardware Specification

QNAP TES-3085U-D1531-16GR
Dual OS options 18-bay Rackmount NAS

CPU

Intel Xeon Processor D-1531, 6-core 2.2 GHz

System Memory  16 GB DDR4 ECC RAM ( 8 GB RDIMM x 2 ) / expandable up to 128 GB ( 4 x 32 GB)
Flash Memory  4 GB DOM
Hard Disk Drive

Front: 2.5"x 24

Rear: 2.5" SSD slot x 6

The system is shipped without Hard Disk

Drive Compatibility Front: SAS 12Gb/s, SAS 6Gb/s, SATA 6Gb/s HDD and SSD
Rear: SATA 6Gb/s SSD
LAN Port

2 x SFP+ 10GbE ports
4 x Gigabit ports

PCIe Slot

4
Slot 1: PCIe Gen.3 x8
Slot 2: PCIe Gen.2 x4
Slot 3: PCIe Gen.3 x4
Slot 4: PCIe Gen.3 x4 or PCIe Gen.3 x8
Note: Slot 4 provides the width of PCIe Gen.3 x8 when slot 3 is not in use

USB

2 x USB 3.0 port (rear)

For QTS OS: The USB slots support pen drives and other USB-ready devices such as printers, UPS, etc.

For QES OS: The USB slots are only reserved for development and debugging.

LED Indicators  10 GbE, Status, LAN, Storage expansion port status
Buttons

Power button and reset button

Form Factor

2U, Rackmount

Power Supply Redundant Power Supply 450W x 2, 90-264VAC
Dimensions 88.3 x 439 x 484.5 mm
