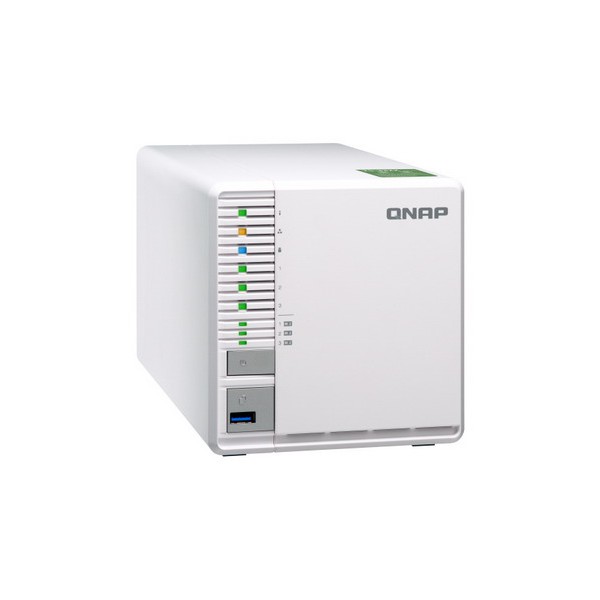

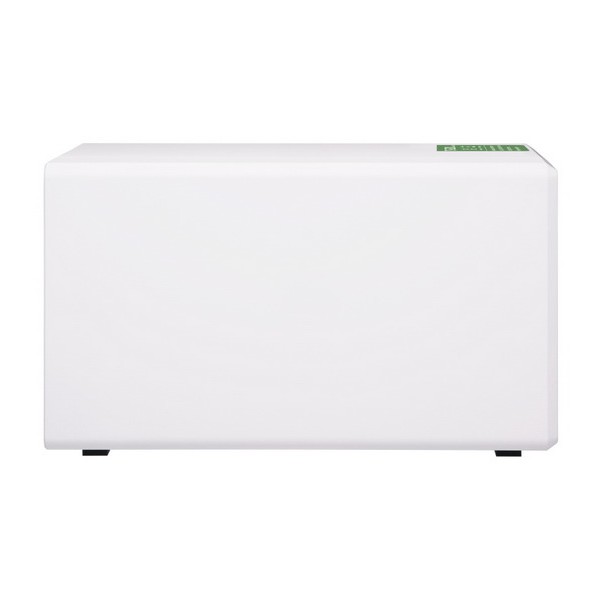

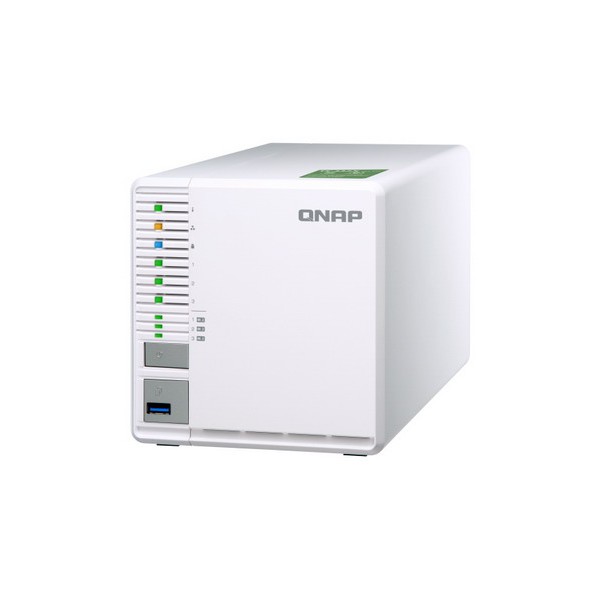

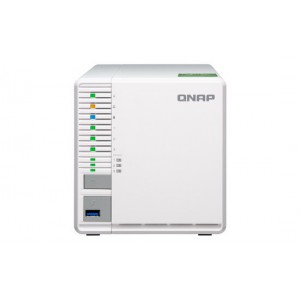

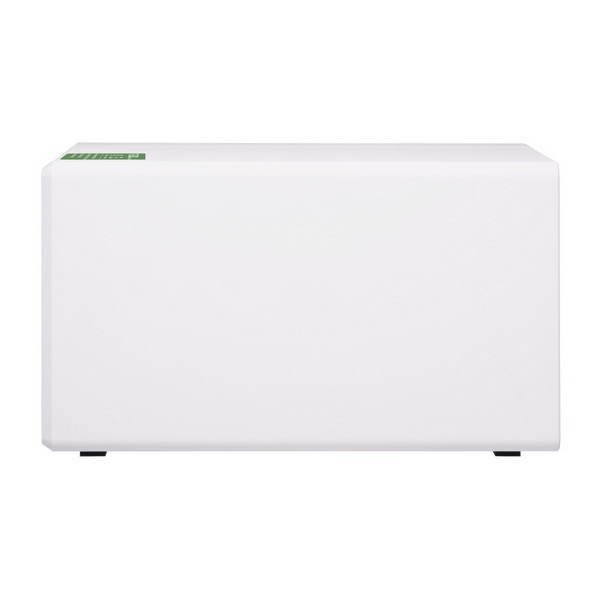

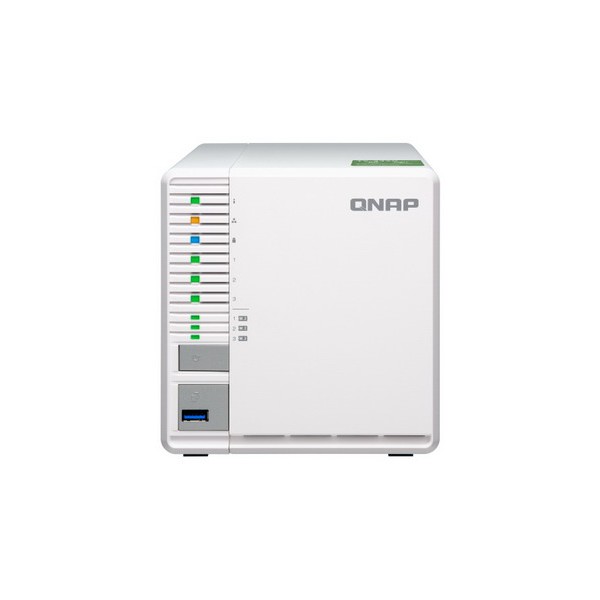

QNAP TS-332X-2G 3-Bay RAID 5 NAS with M.2 SSD slots

3-Bay / RAID 5 NAS

CPU : AnnapurnaLabs Alpine AL-324 Quad-core Processor

Memory : 2 GB DDR4

M.2 SSD Slot : 3 x M.2 2280 SATA

10 Gigabit Port : 1

Gigabit Port : 2

More details


15,440.00 ฿ tax excl.

QNAP TS-332X-2G 3-bay RAID 5 NAS

10GbE with three M.2 SSD SATA slots



30% of QNAP users choose RAID 5 arrays for their NAS to provide higher data protection, better system performance and optimized storage utilization. The 3-bay TS-332X not only allows you to build a RAID 5 array on your NAS with the fewest disks, but also features a 10GbE SFP+ port and three M.2 SATA 6Gb/s SSD slots to enable higher performance for tackling performance-demanding operations. Featuring a minimalist design, the affordable 10GbE-ready TS-332X can easily fit your commercial space.


QNAP NAS is shipped without HDD



Hardware Specification

QNAP TS-332X-2G 3-Bay NAS

CPU

AnnapurnaLabs Alpine AL-324 Quad-core 1.7GHz ARM Cortex-A57 Processor

System Memory

2 GB DDR4 2400 (1 x 2 GB)

Expandable Max. 16 GB (1 x 16 GB)

Flash Memory  512 MB NAND Flash
Drive Bay

Hot-swappable 3 x 3.5"/2.5" SATA 6Gb/s HDD/SSDs

2.5" tray base for installing 2.5" HDD/SSD can be purchased

The system is shipped without Hard Disk

M.2 SSD Slot

3 x M.2 2280 SATA 6 Gbps SSD

The M.2 SSD is not included as standard.

10 Gigabit Ethernet Port

1 x 10GbE SFP+

Gigabit Ethernet Port

2 x Gigabit RJ45

USB Port

USB 3.0 (Front: 1; Rear: 2)

Audio

1 x Built-in speaker

1 x 3.5mm line out jack

LED Indicators

Status/Power, LAN, USB, HDD 1-3, M.2 SSD 1-3

Buttons

Power, Reset, USB One-touch-copy

Form Factor Tower
Dimensions 142 x 150 x 260.1 mm
Weight  1.64 kg
