Rackmount / Redundant Power Supply
CPU : AMD Ryzen 7 Processor
Memory : 16 GB DDR4 (Max. 64 GB)
Harddisk Tray : 16-Bay
LAN : 2x 10GbE SFP+ / 2x Gigabit
PCIe Slot : 4
USB Port : 2 USB 3.1 / 4 x USB 3.0
Powered by AMD’s powerful Ryzen processor, the TS-1677XU-RP is capable of boosting virtual machine performance with up to 8 cores/16 threads and Turbo Core up to 4.1 GHz. Four PCIe Gen.3 slots provides expandability to provide more potential applications and functionality for the TS-1677XU-RP. The TS-1677XU-RP also features a redundant power supply to ensure maximum system uptime.
Price is excluded RAIL-A03-57 Rail Kit.
QNAP NAS is shipped without Hard Disk
Hardware Specification :

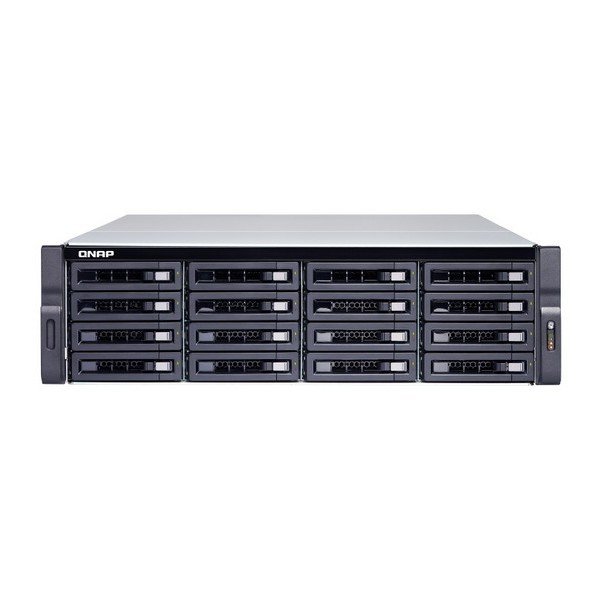

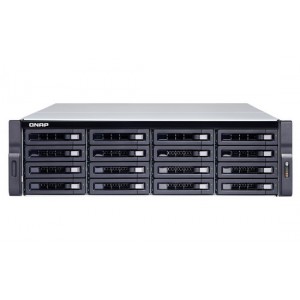

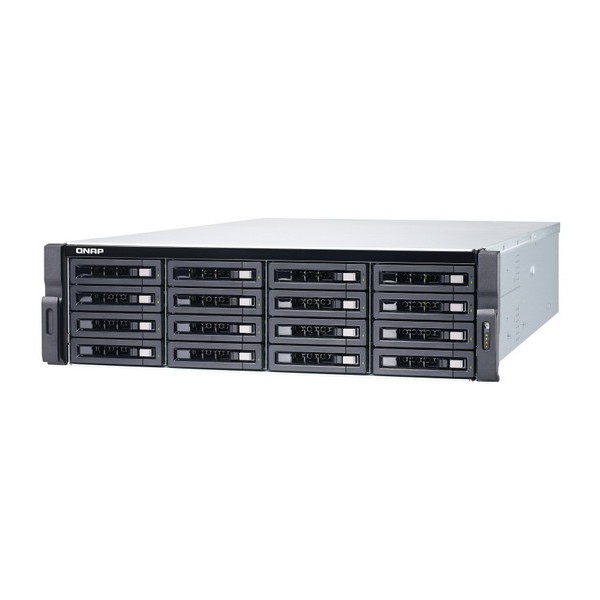

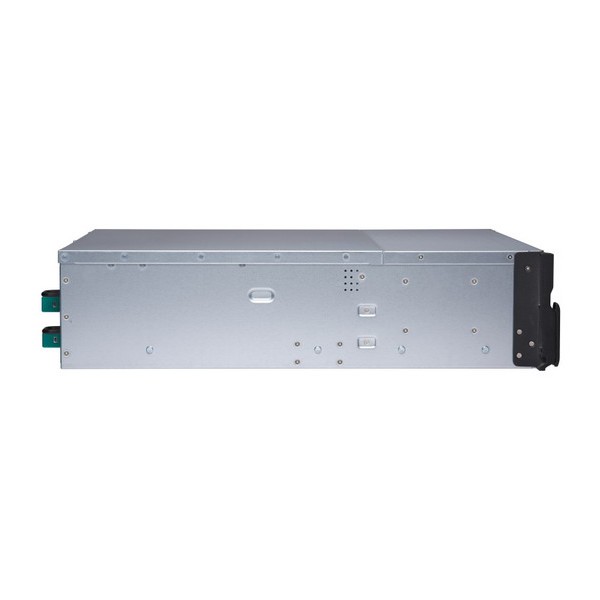

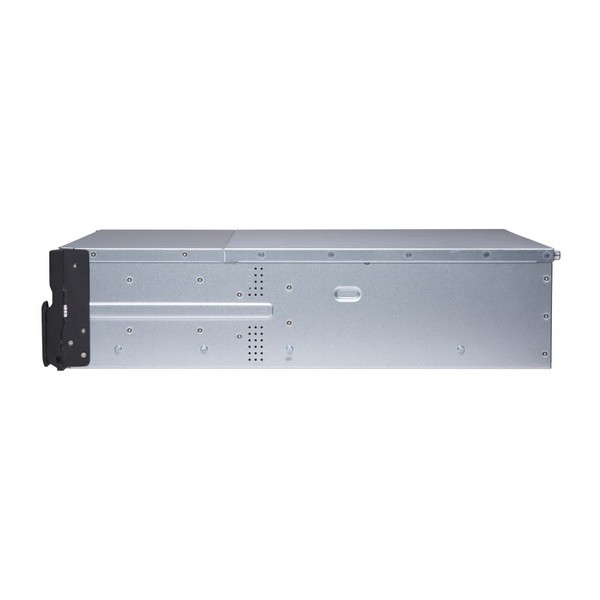

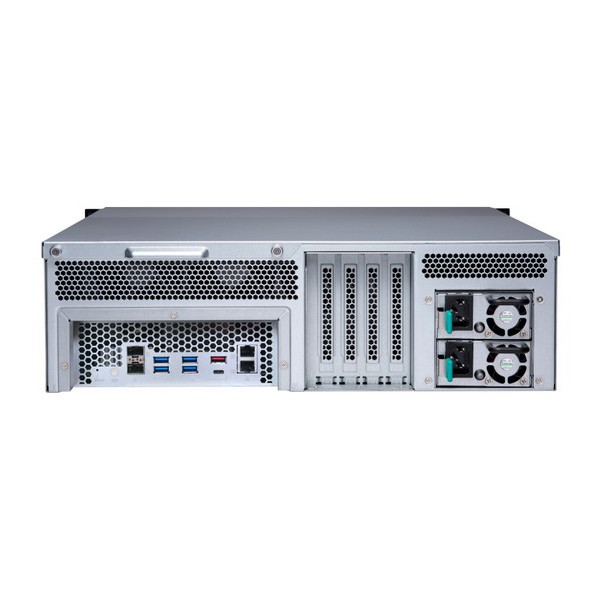

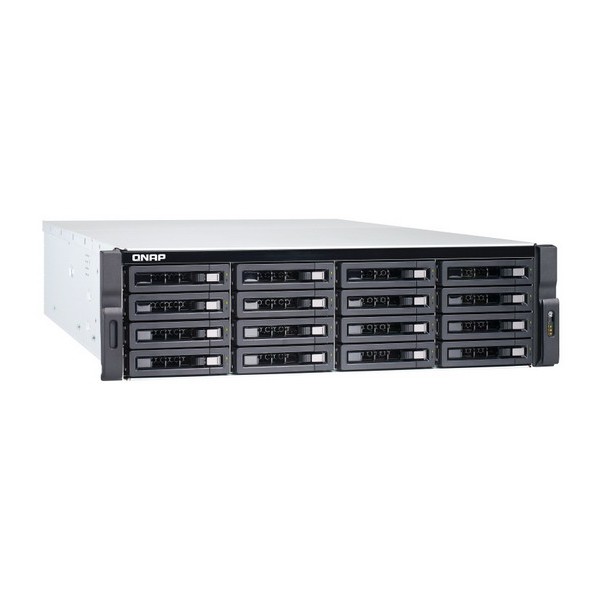

QNAP TS-1677XU-RP-2700-16G
AMD Ryzen-based 16-bay Rackmount NAS
| CPU |
AMD Ryzen 7 2700 8-core/16-thread 3.2 GHz processor, Turbo Core 4.1 GHz |
| System Memory | 16 GB DDR4 (2 x 8GB) / expandable up to 64 GB ( 4 x 16 GB) |
| Hard Disk Drive |
Hot-swappable 16 x 3.5-inch SATA 6 Gbps bays The system is shipped without Hard Disk |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| LAN Port |
2 x 10GbE SFP+ SmartNIC ports |
| PCIe Slot |
4 |
|
USB |
1 x USB 3.1 Gen 2 (10 Gbps) Type-C 1 x 3.1 Gen 2 (10 Gbps) Type-A 4 x USB 3.0 Type-A |
| Form Factor |
3U, Rackmount |
| Power Supply | Redundant Power Supply 500W (x2), 100-240V AC, 50/60Hz |
| Dimensions | 130 x 481 x 573.5 mm |
| Weight | 17.16 kg |
