Rackmount / Redundant Power Supply
CPU : Intel Xeon E-2124 Processor
Memory : 16 GB DDR4 ECC (Max. 64 GB)
Harddisk Tray : 16-Bay
LAN : 2x 10GbE SFP+ / 4x Gigabit
PCIe Slot : 4
USB Port : 6 USB 3.1 (10Gbps)
The Intel Xeon E based TS-1683XU-RP enterprise NAS with up to 64 GB DDR4 ECC (Error Correcting Code) memory delivers server-grade performance with dependable reliability. It features Mellanox ConnectX-4 Lx 10GbE controllers that not only fulfill bandwidth-demanding applications but also support iSER to offload CPU workloads with boosted virtualization performance, while PCIe expansion allows for installing graphics cards to empower video surveillance, virtualization and AI applications. The performance-driven TS-1683XU-RP provides you with advanced business-ready features, including software-defined SSD extra over-provisioning, software-defined networking & virtual switch, and much more.
Price is excluded RAIL-A03-57 Rail Kit.
QNAP NAS is shipped without Hard Disk
Hardware Specification :

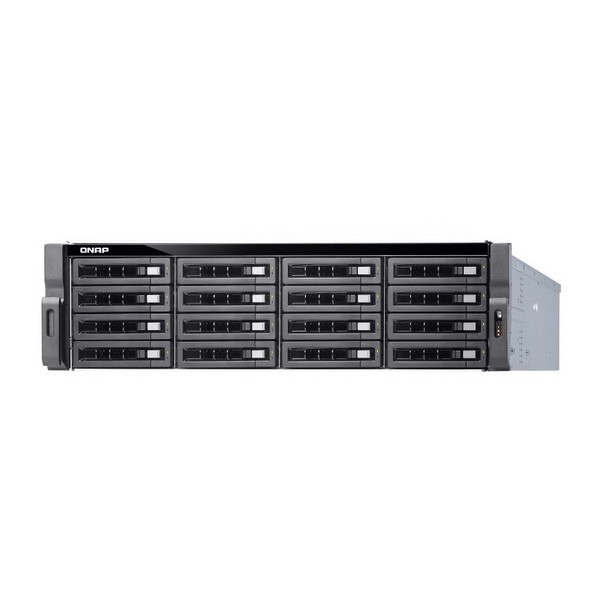

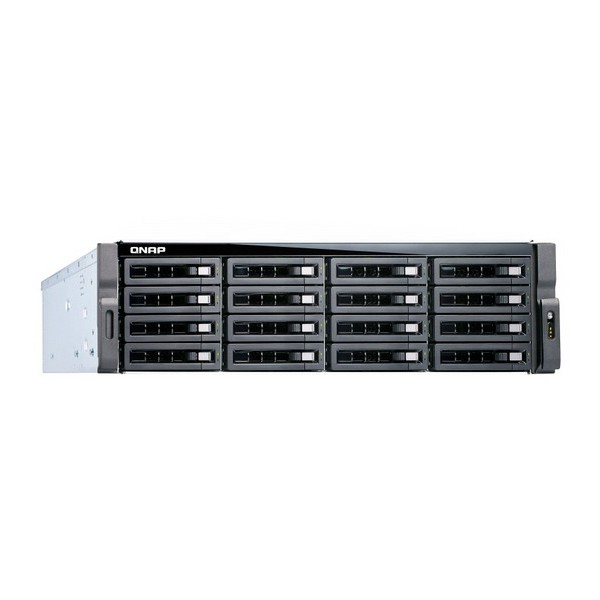

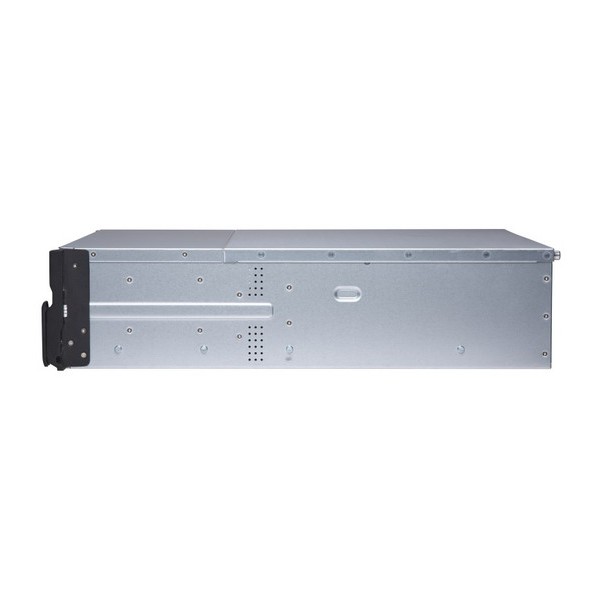

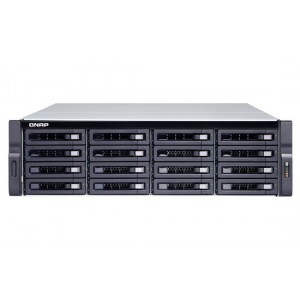

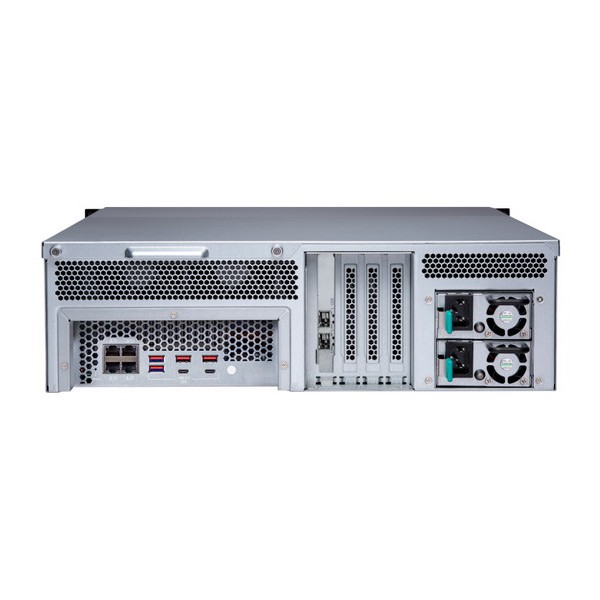

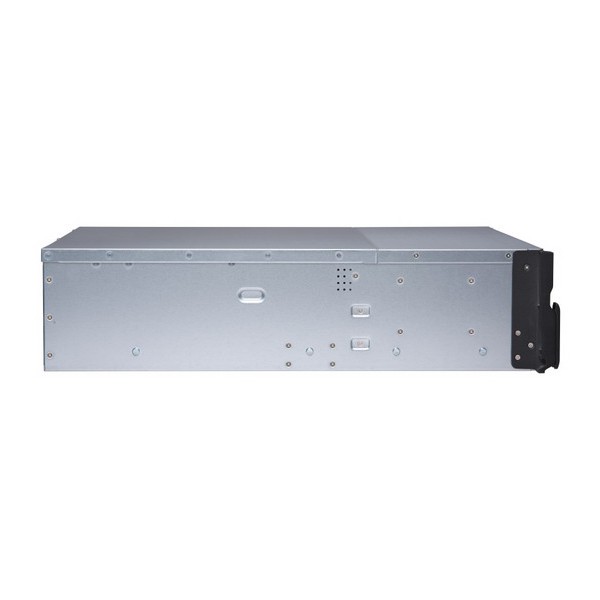

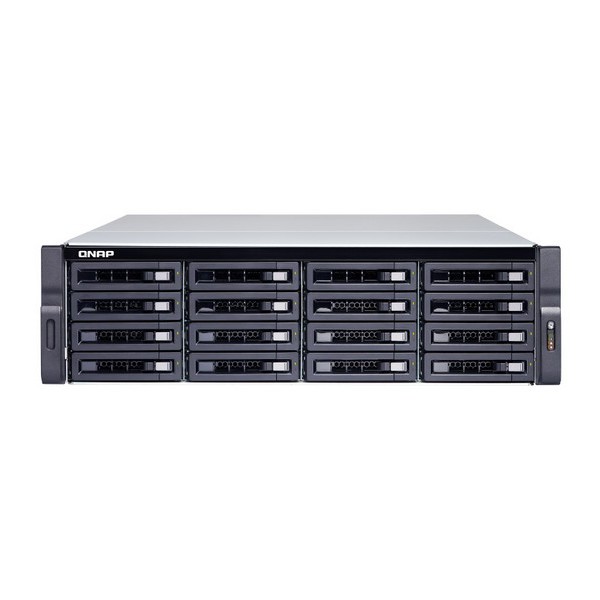

QNAP TS-1683XU-RP-E2124-16G
Server-grade 16-bay Rackmount NAS
| CPU |
Intel Xeon E-2124 4-core 3.3 GHz processor (burst up to 4.3 GHz) |
| System Memory | 16 GB DDR4 ECC RAM (2 x 8GB) / expandable up to 64 GB ( 4 x 16 GB) |
| Flash Memory | 4 GB (Dual boot OS protection) |
| Hard Disk Drive |
Hot-swappable 16 x 3.5-inch SATA 6 Gbps bays The system is shipped without Hard Disk |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| LAN Port |
2 x 10GbE SFP+ SmartNIC ports |
| PCIe Slot |
4 |
|
USB |
2 x Type-C USB 3.1 Gen2 10Gbps 4 x Type-A USB 3.1 Gen2 10Gbps Support USB printer, pen drive, USB hub, and USB UPS etc. |
| LED Indicators | HDD 1-16, Status, LAN, Storage expansion port status |
| Buttons |
Power, Reset |
| Form Factor |
3U, Rackmount |
| Power Supply | Redundant Power Supply 500W (x2), 100-240V |
| Dimensions | 130 x 481 x 573.5 mm |
| Weigh | 13.76 kg |
