Home>QNAP Expansion>QNAP QM2-2S-220A Dual M.2 22110/2280 SATA SSD expansion card

QNAP QM2-2S-220A Dual M.2 22110/2280 SATA SSD expansion card

QNAP QM2-2S-220A Dual M.2 22110/2280 SATA SSD expansion card
  • QM2-2S-220A expansion card
  • Interface : PCIe Gen2 x 2
  • No. M.2 Slot : 2
  • M.2 SSD Types : SATA

More details


3,360.00 ฿ tax excl.

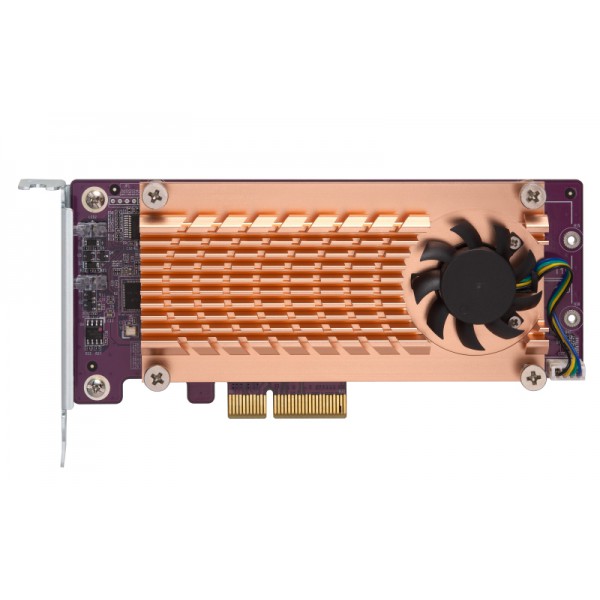

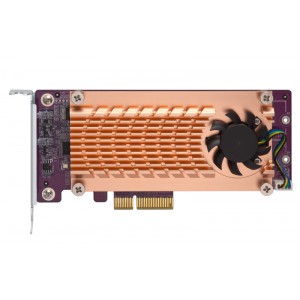

QNAP QM2-2S-220A expansion card

Boost system performance and optimize storage utilization with SSD caching and Qtier Technology



The QM2 expansion card allows for adding M.2 SSDs to your QNAP NAS, providing an ideal solution for increasing storage capacity and IOPS performance. It is ideal for performance-demanding applications, such as inline videoediting, gaming and more.

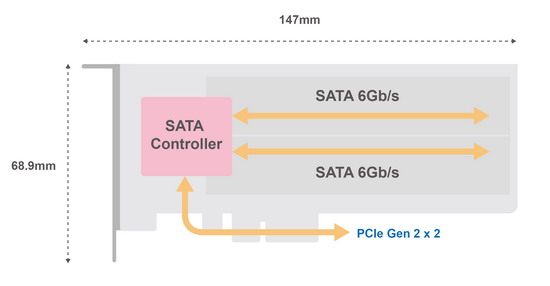

QM2-2S-220A Expansion Card Architecture Diagram




Hardware Specification :

QM2-2S-220A : Dual M.2 22110/2280 SATA SSD expansion card

Interface

PCIe Gen2 x 2
Supported M.2 SSD Types

2 x M.2 22110 or 2280 SATA SSD slots
Connector

B+M Key
Bracket  Low-profile pre-loaded,
Low-profile flat and Full-height are bundled
Dimensions 147.15(L) x 68.9(W) x 20.6(H) mm;



M.2 SSDs are not included as standard
