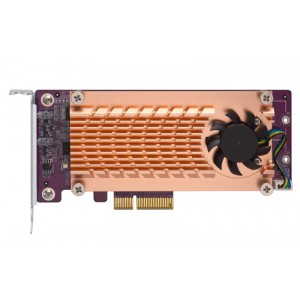

QNAP QM2-2P-384 Dual M.2 22110/2280 PCIe NVMe SSD expansion card

QNAP QM2-2P-384 Dual M.2 22110/2280 PCIe NVMe SSD expansion card
  • QM2-2P-384 expansion card
  • Interface : PCIe Gen3 x 8
  • No. M.2 Slot : 2
  • M.2 SSD Types : PCIe (Gen3 x 4) NVMe

More details


8,600.00 ฿ tax excl.

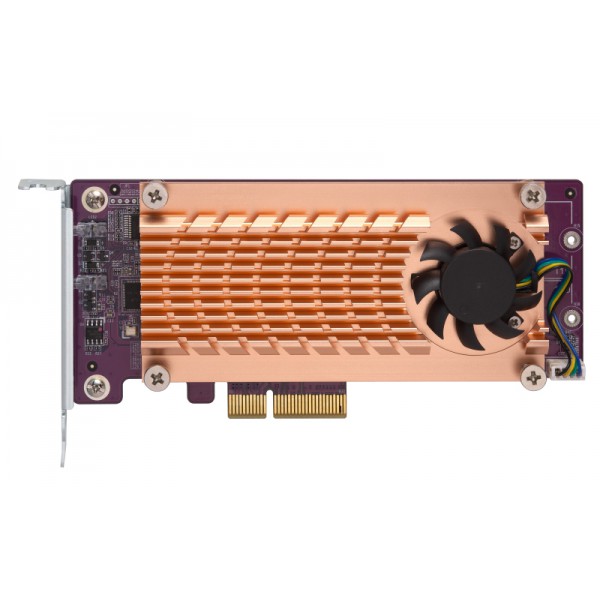

QNAP QM2-2P-384 expansion card

Boost system performance and optimize storage utilization with SSD caching and Qtier Technology



The QM2 expansion card allows for adding M.2 SSDs to your QNAP NAS, providing an ideal solution for increasing storage capacity and IOPS performance. It is ideal for performance-demanding applications, such as inline videoediting, gaming and more.

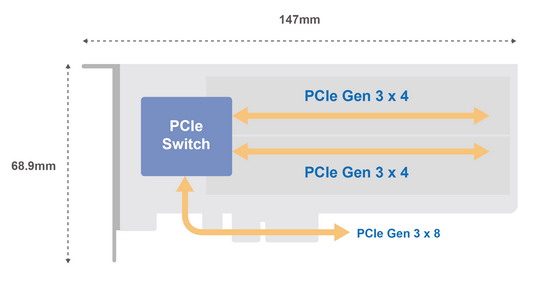

QM2-2P-384 Expansion Card Architecture Diagram.jpg




Hardware Specification

QM2-2P-384 : Dual M.2 22110/2280 PCIe NVMe SSD expansion card

Interface

PCIe Gen3 x 8

Supported M.2 SSD Types

2 x M.2 22110 or 2280 PCIe (Gen3 x 4) NVMe SSD slots

Connector

M Key

Bracket  Low-profile pre-loaded,
Low-profile flat and Full-height are bundled
Dimensions 147.15 x 68.9 x 20.6 mm;



M.2 SSDs are not included as standard
